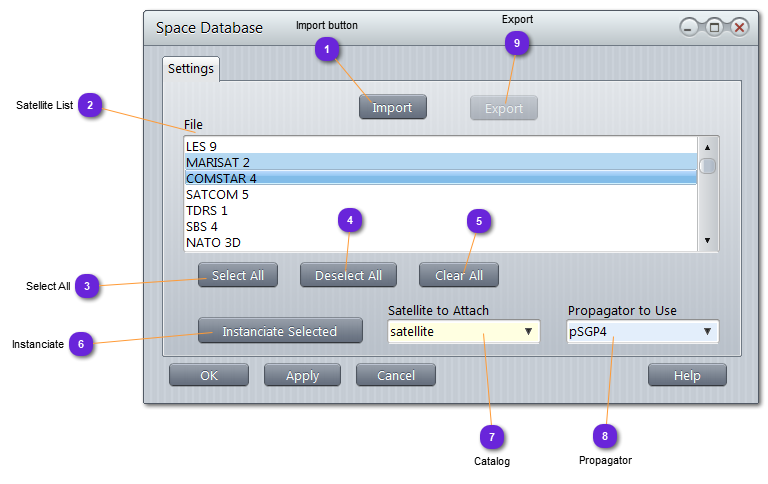

Import button First, use this button to import a TLE definition file located in /Data/Satellites (or anywhere else)
These files are NORAD TLE formatted entries.
They can be extracted from the celestrack website or manually added from any other source.
Files must list all TLE including lines 0-1-2 for each satellite (orbit) definition.
Satellite List List all satellites from the loaded (imported) database file.
This list is selectable (multiple select using the Ctrl key, continuous with the Shift key)
Select All Select all satellites in the above list.
Deselect All Deselect all selected satellites in the above list.
Clear All Remove all imported satellites from the list.
Do this before loading another database. If not, newly imported ones will be added.
Instanciate When depressed, all selected satellites (2) will be instantiated as TLE orbits. If set, associated satellite entity will be created along with the proper propagator.
Catalog Specific here from the drop down list which entity (preferably a satellite) will be dropped on each instantiated orbits.
Propagator Specify here from the drop down list which propagator (supporting TLE) will be added for each instanciated satellite.
Export Not available yet
