Filters


This panel works only for selected entities. Use the map to select them first.

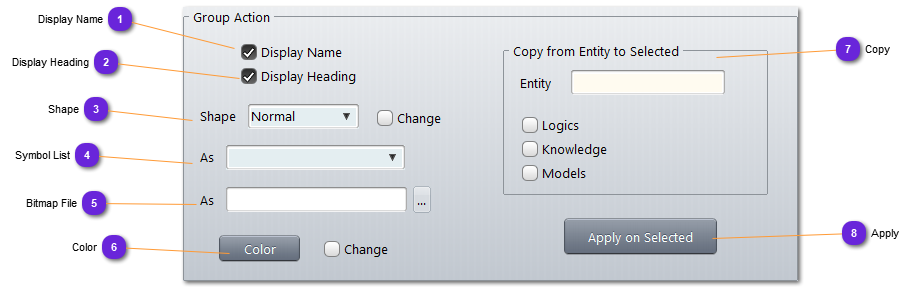

Filters
1

Display Name

1. Display Name
Show/Hide the name on the map for selected entities.

2

Display Heading

2. Display Heading
Show/Hide the heading arrow on the map for selected entities.

3

Shape

3. Shape
Set the 2D shape to the selected entities.
If Change is checked, the setting will be applied.

4

Symbol List

4. Symbol List
If shape is referring symbol, use this list to select the one to use.

5

Bitmap File

5. Bitmap File
If shape is referring a raster/bitmap file, use this selector to select which.

6

Color

6. Color
Set the color of the selected entities.
If Change is checked, the selected color will be applied.

7

Copy

7. Copy
Give here the name of the source entity you want to use to overwrite the selected one.
If Logics is checked, all source entity logics will be copied.
If Knowledge is checked, all source entity knowledge will be copied.
If Models is checked, all source entity models/components will be copied.

8

Apply

8. Apply
Once all the settings are done, use this button to apply.
Cannot be undo.
