Callbacks


Callbacks are the code associated with the Command (event).
The code is called after the event (command name) is propagated to the Scenario.

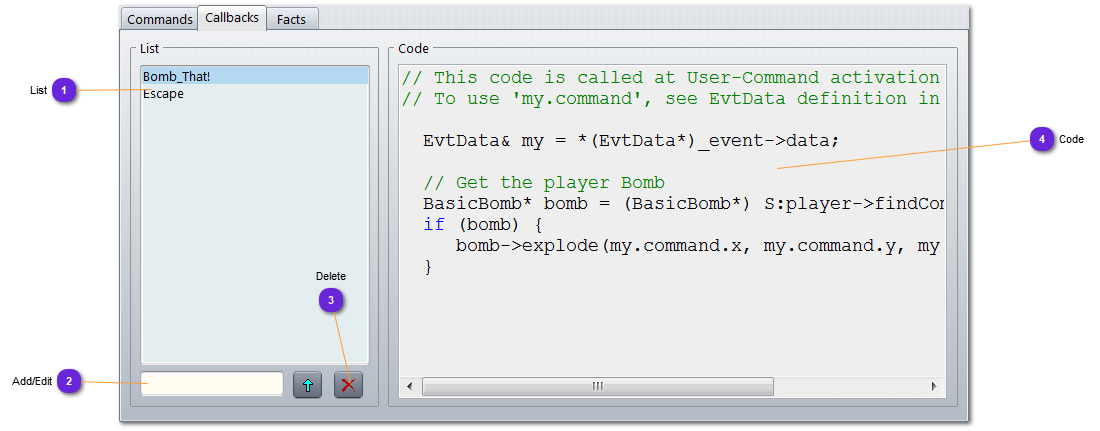

Callbacks
1

List

1. List
Lists all events defined at the scenario level. For each event, a C++ function code is associated.

2

Add/Edit

2. Add/Edit
To add a new event, just type its name in the text field below the list and use the button.

3

Delete

3. Delete
To delete an event, select it and use this button.

4

Code

4. Code
To specify the reacting code for an event, select it from the Event List and use this text area to put whatever C++ code you need.
If the event is carrying data, _event is not NULL and can be used locally, once converted into EvtData (see definition in runtime.h)
