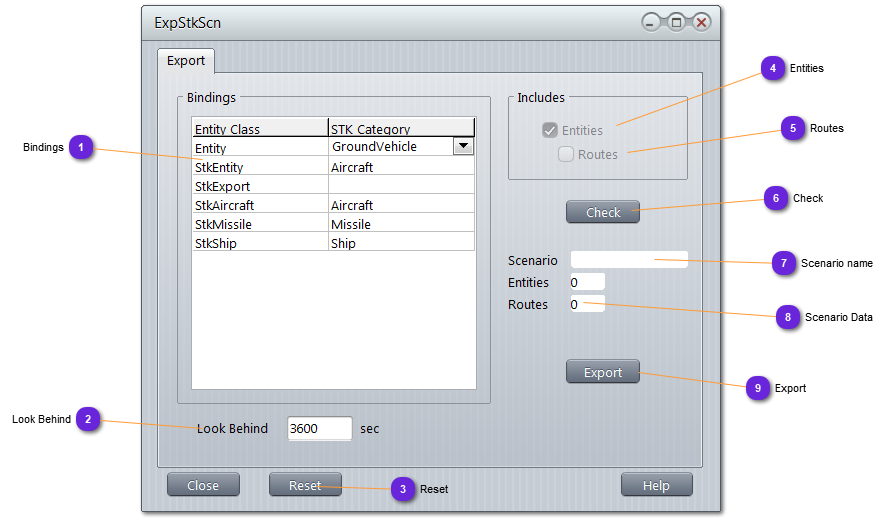

STK Exporter


STK Exporter
1

Bindings

1. Bindings
User must pair for each vsTASKER Entity Class the corresponding STK Category.
With this binding, whenever a vsTASKER Entity will be found in the current scenario, the exporter will create an STK entity at the same location and of the same type as defined in the table.

When the vsTASKER Entity Class is not paired, the Entity will not be exported.

2

Look Behind

2. Look Behind
Will set STK with this value for runtime use.

3

Reset

3. Reset
Tries to set default (factory) values to most of the window fields.

4

Entities

4. Entities
The importer will parse all Entities of the current scenario, and for each of them belonging to a Class bound with an STK Category, will create a corresponding STK Entity.

5

Routes

5. Routes
Not available

6

Check

6. Check
This button will run the exporter with the current settings and will display the result of the export in the text field below.

7

Scenario name

7. Scenario name
Name of the current scenario as it will be reflected in the STK running instance.

8

Scenario Data

8. Scenario Data
Lists the total number of objects that will be exported according to the current settings.

9

Export

9. Export
This button will run the exporter with the current settings and will add in the remote STK instance exportable entities.
