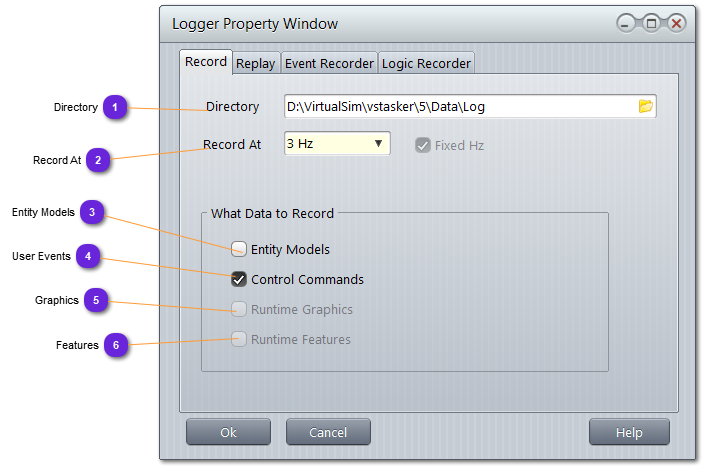

Record


Record
1

Directory

1. Directory
Set here the location of all the log files.
A Log set is made of four files:
<database_name>_<number> then the four extensions: ent, evt, log, rec

2

Record At

2. Record At
Specify here the frequency at which the entity position must be recorded.

3

Entity Models

3. Entity Models
If this option is checked, the Entity components (attached to each Entity) will be called to store specific data.
At Replay, these components will also be called with the stored data, in a special function.
As no component is running, the processing of this data will be left to the user code.

4

User Events

4. User Events
If this option is checked, all user-defined Events will be time stamped and recorded. At replay (and only going forward), these Events will be triggered.
As no logic nor component are running, the processing of these Events will be left to the user code.

5

Graphics

5. Graphics
Option to record and replay all Graphic commands sent from the SIM to the GUI (sensor shape for i.e)
Not available yet.

6

Features

6. Features
Option to record and replay all runtime Features initiated from the SIM to the GUI (new trajectory or special zone for i.e)
Not available yet.
