Rule


A Rule is a Context piece of code that is called until the rule is fired (triggered).
A Rule is considered fired on two conditions only:

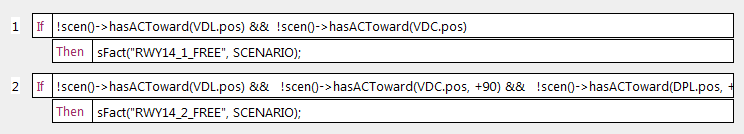

Double click on a Context symbol to open it and display its content (Rules) on the Diagram panel.
Double click on the background to close it and return to the Context view.


A Rule can access directly all data and methods defined in the Context as well as all vsTASKER API and internal data.


On the background:
Edit Context: call the Context property window.

Add Rule: append a new Rule in the list (at the end).

Up: close the View and return to the Context view (same as double clicking on the background)

When a Rule is selected:
Edit Rule: call the Rule property window.

Move Up: move up the selected Rule in the list, to be processed earlier.

Move Down: move down the selected Rule in the list, to be processed later.

Rename: no effect, Rule has no name.

Cut: allow moving one rule from one Context to one another. Copied and deleted locally.

Copy: copy the selected Rule into the clipboard.

Duplicate: copy and append the selected Rule.

Delete: remove the Rule from the list (cannot undo).


To add rules into a Context, you must first open a Context by double clicking its symbol. Any click on this button appends a new Rule into the context.


scen() or S: is a macro that returns a pointer to the Scenario instance that holds the Entity instance that holds the Knowledge instance that holds the current Context.
ent() or E: is a macro that returns a pointer to the Entity instance that holds the Knowledge instance that holds the current Context.
know() or K: is a macro that returns a pointer to the Knowledge instance that holds the current Context.


Contents of Rule

Properties
