Alternate Flight-Plan

Let's open lfbo-lfrm sample.

Select

in the main toolbar, then open lfbo-lfrm.db in data/db/samples/RNAV/lfbo-lfrm

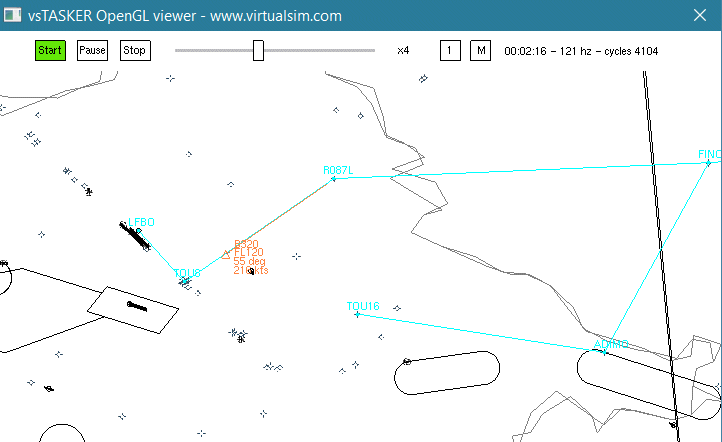

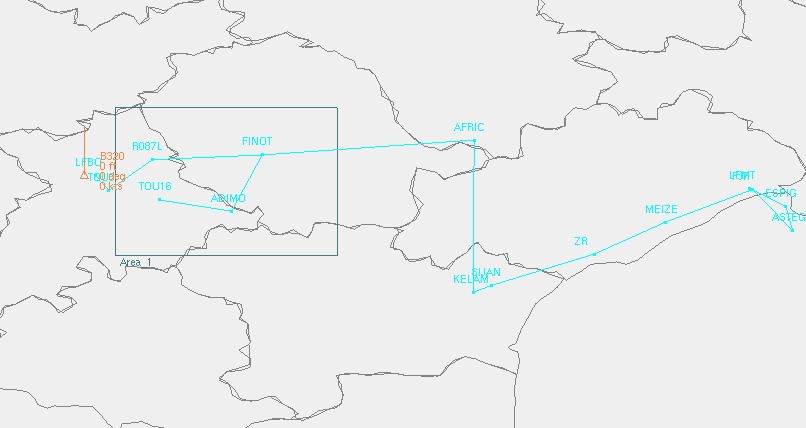

Once loaded, your application will looks like below:

Simple flight plan following with the capability to manually divert using an alternate flight-plan (using the command Alternate) on the B320 aircraft.

Compile, load and start.

It may be useful to accelerate the simulation speed to x4 (on the OpenGL window).

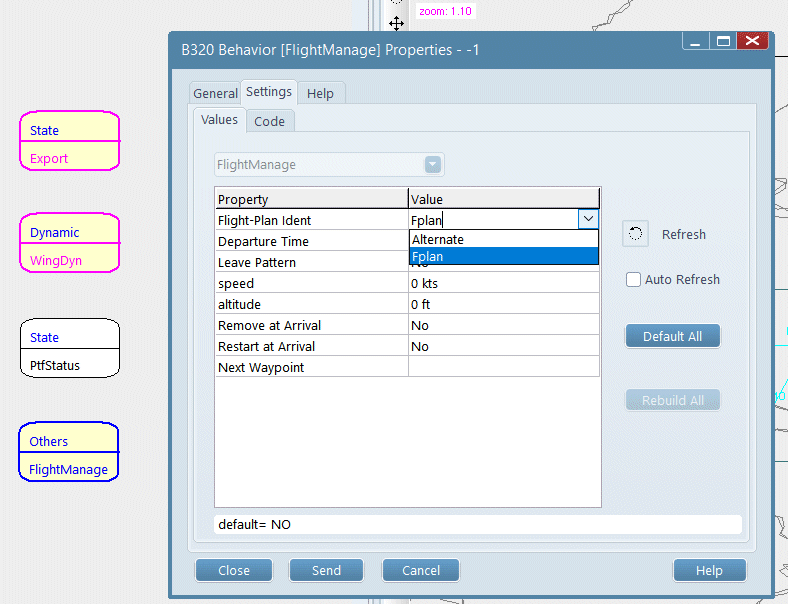

Once the aircraft is between TOU8 and R087L, select the aircraft, click on Models, open the FlightManage component, change the flight plan to alternate and press Send.

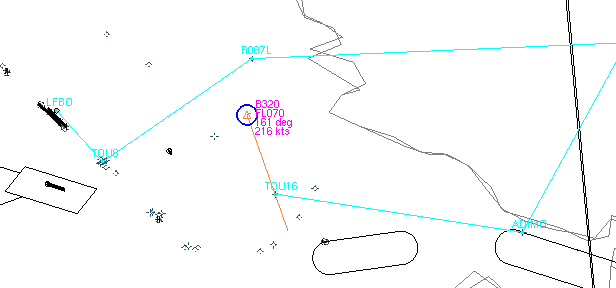

The aircraft will quit the current flight plan and select the alternate:

This demo publishes on the LAN all flight plans, wind, trajectories and zones. Useful for another client to retrieve or display this data.
