First Shooter

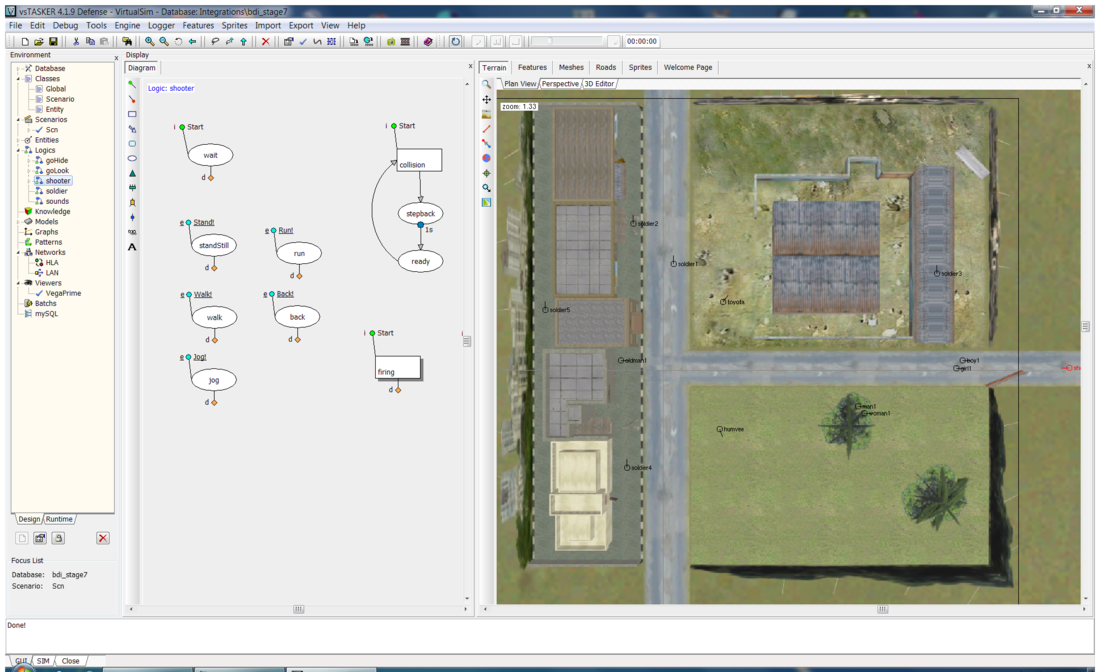

Open bdi_stage7 in data/samples/integrations database.

Runaway animates 100 Di-Guy entities into a scenario involving a helicopter landing and crashing.

Bdi_stage7 is a First Person Shooter that is controlled from a joystick or gamepad (Logitech USB). The purpose is to find enemies and shoot at them without being killed.

You need to press button 3 to aim (and button 3 again to walk).

Use the trigger button to fire.

For the integration, base Entity Class got the following defined:

vpDiguyCharacter* diguy_man;

diguyCharacter* man;

These pointers are initialized in vsTASKER the same way as it is from a Di-Guy user module:

diguy_man = new vpDiguyCharacter();

diguy_man->setName(getName());

diguy_man->setCharacterType("afghan_child_crowd");

diguy_man->setAppearance("afghan_girl2");

In most of the Logics, controlling Di-Guy character is done using direct API:

E:man->force_action("stand_ready", DIGUY_DEFAULT_FLOAT, 1, 0.0f);

In the Database Settings, Compilation and Link pane, specific header files and libraries are used to compile and link the vsTASKER code including Di-Gui API and VegaPrime API to generate the final executable.

These demos can be recompiled from vsTASKER or/and debugged from vst_vega.sln found in /Runtime/DiGuy directory.

Because VegaPrime is used with Lynx, .ACF files are needed (/Runtime/DiGuy). These ACF files are using some models (FLT) and sound files (WAV) that might not be distributed with vsTASKER for copyright reasons.
