Testing with MPV

To test vsTASKER CIGI, we can use the Multi-Purpose Viewer provided freely for CIGI testing (see here).

It is provided in /Runtime/CIGI/MPV

Go to the /Runtime/CIGI/MPV directory.

Edit the following file: config/system.def and change the host IP address accordingly (should be the IP of the machine which is running MPV)

Then, start it using start_MPV.bat batch file

Now, open vsTASKER and load the test_MPV database in /Db/CIGI/test_MPV

Go to CIGI and double click the background (or right click, then Properties).

Change the IP with the one running MPV.

Recompile and load the simulation.

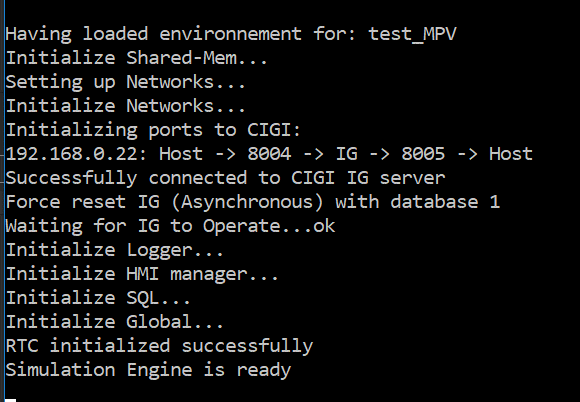

You should see the following on the console:

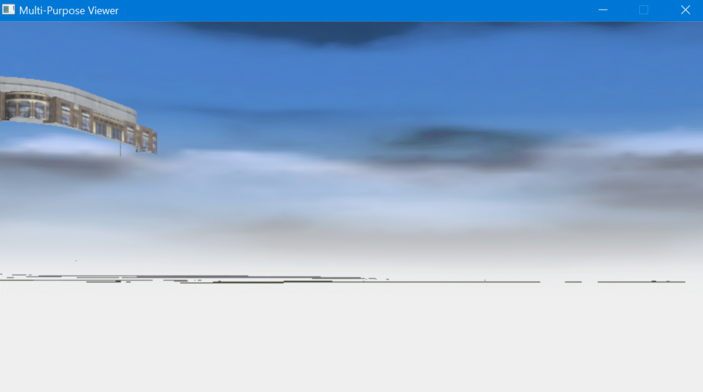

and the MPV should show this image:

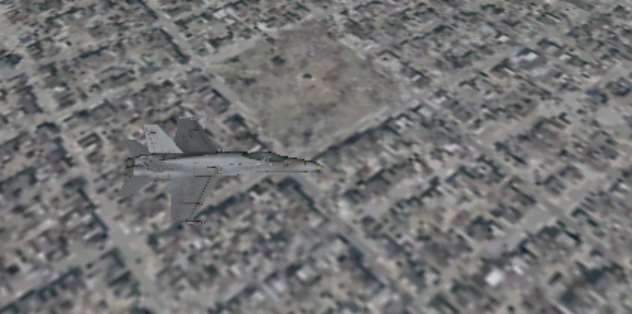

Now, start the simulation and select the F15 on the map. The MPV should focus on the aircraft:

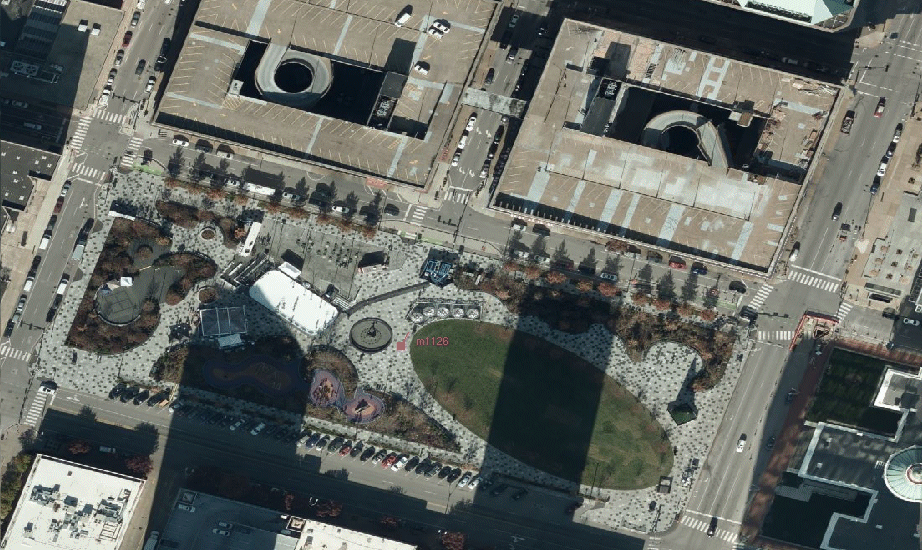

Then zoom on the map, click anywhere (to discard the focus), and select the red m1126:

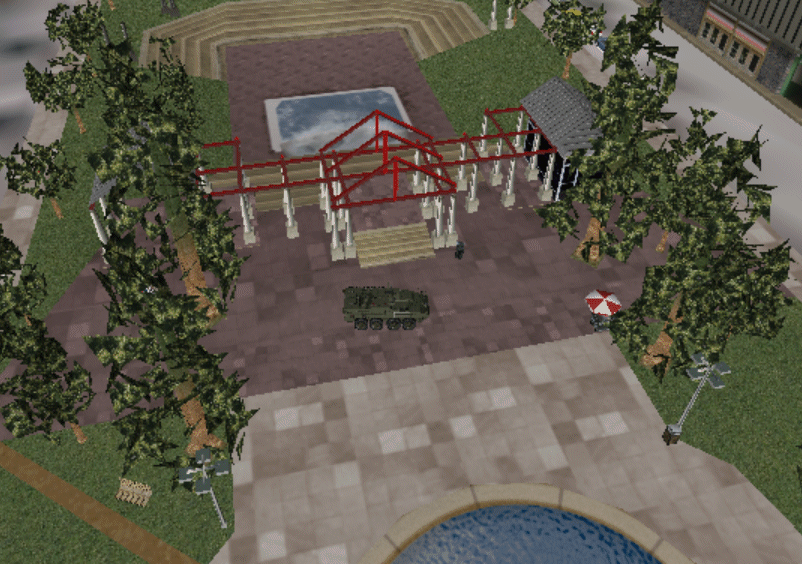

The MPV should now show the land vehicle on the park :
