Now, we will import the STK scenario (created
here) into vsTASKER.

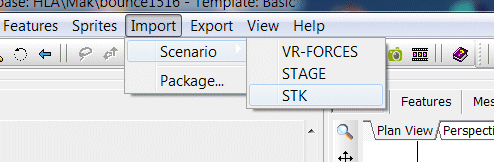

We need to get the STK Imported window using the following command:

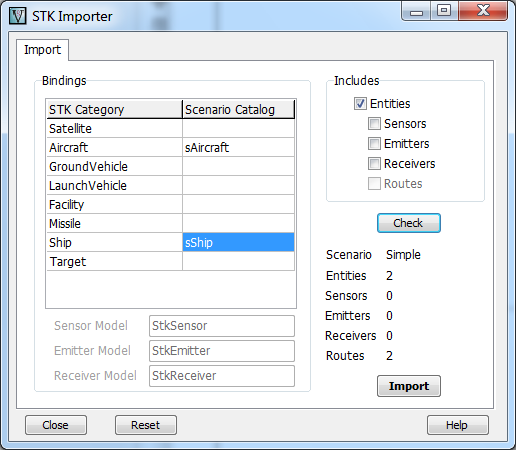

to get the importer:
As we want to import the Aircraft and the Ship, we will only select the two Catalog entities to match the STK corresponding Category.
Then, we click the Import button.
(For detail explanations on the window, refer here).

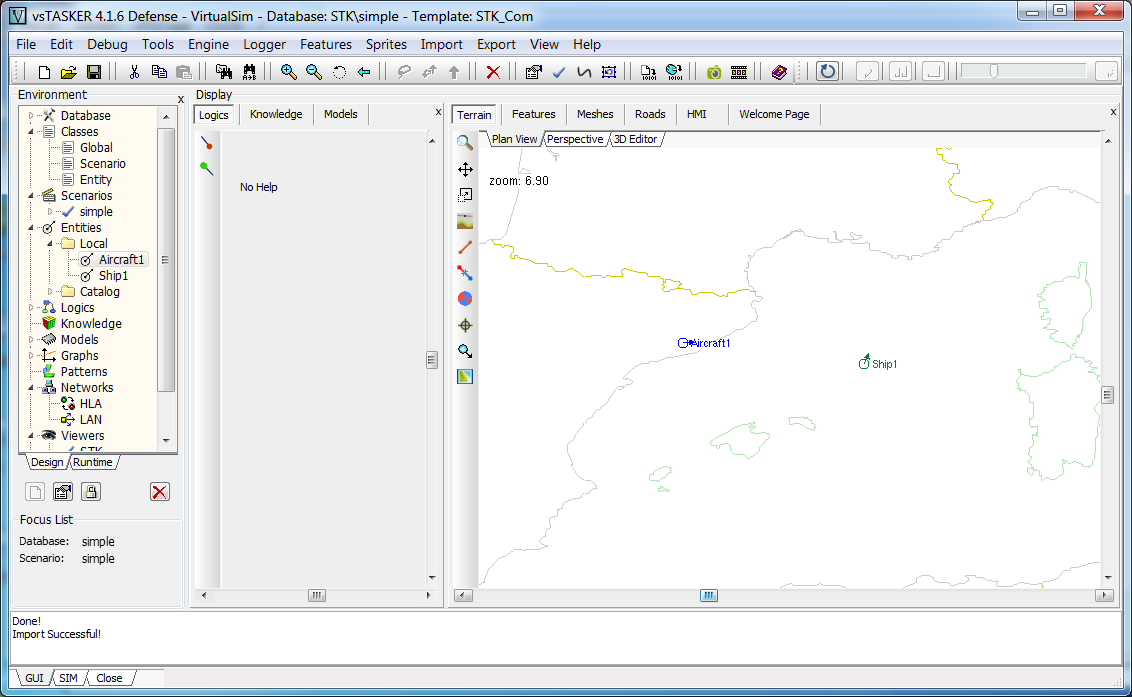

We can notice that the two entities have been created on vsTASKER map.
We have not imported routes because STK will manage it anyway.

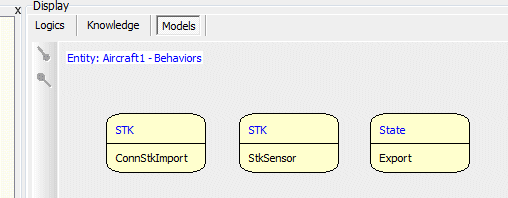

If you select Aircraft1 or Ship1, you will notice that they are using some STK specific Components.

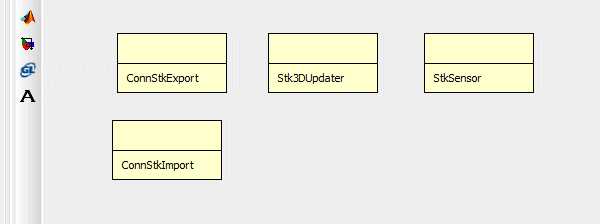

These Components are defined in the STK Model folder and already attached to predefined Catalog Entities to speed up the design process.

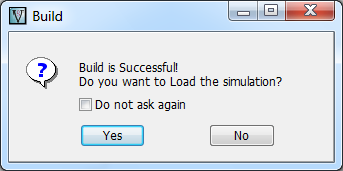

Now, we can just produce and compile the simulation engine.
and then run the simulation.
