Data Provider

This scenario is almost the same as the Communication sample. The difference is that the Aircraft continue the survey mission after the Missile has been fire.

After a certain time, low fuel level will force abortion of the mission.

Another Aircraft must then be sent to replace the first one and continue the mission.

STK is used for the scenario modeling and the analysis capabilities:

Fuel level is computer by STK using the Mission Modeler.

vsTASKER is used to trigger logics and behaviors according to STK runtime data:

Component to check the fuel level of the STK Aircraft

Trajectory runtime modeling of the second aircraft that will support the first one.

The second aircraft will be handler by vsTASKER (not using the STK AMM)

Logic to react to the Low fuel event of the first Aircraft.

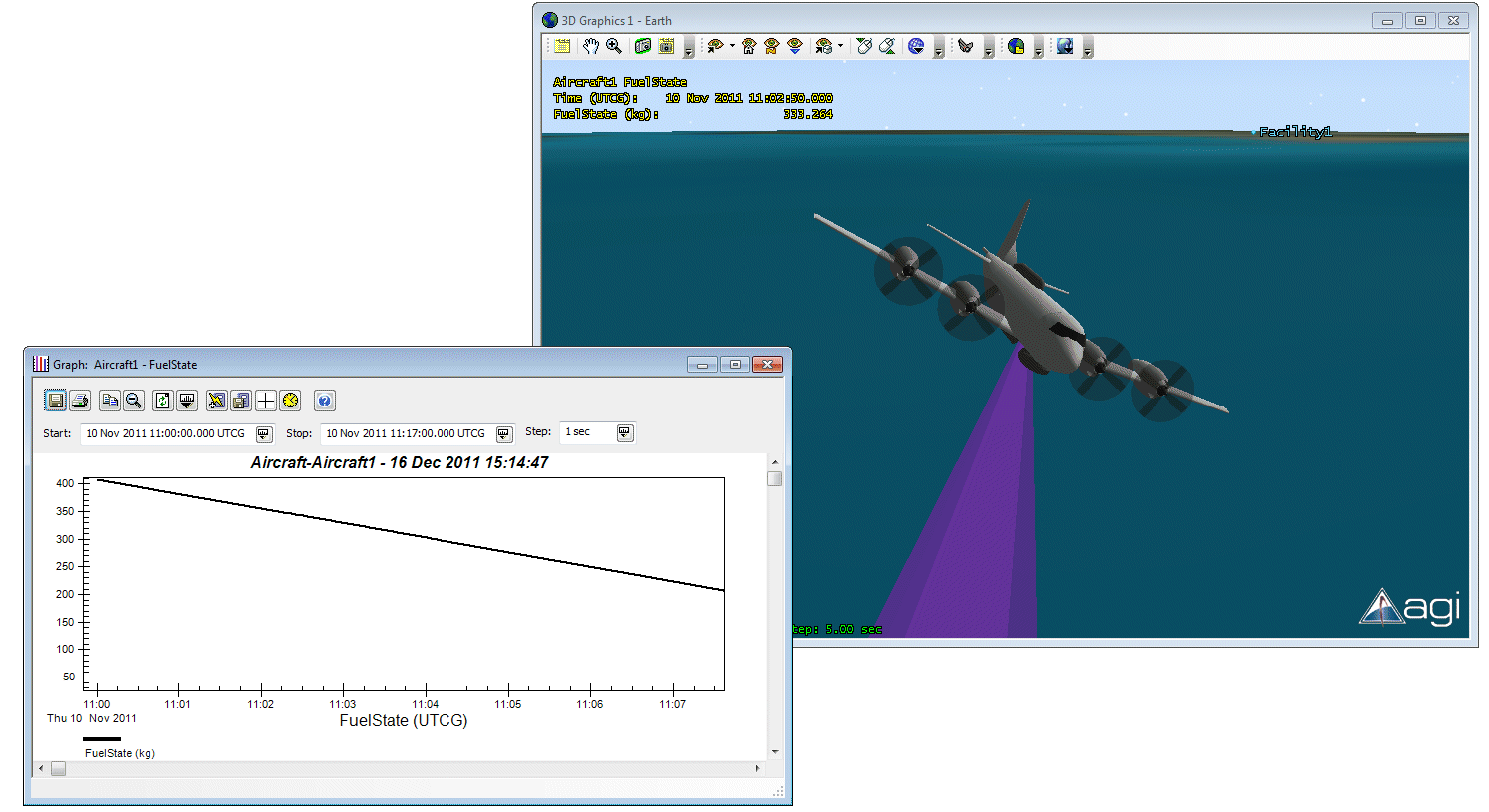

Low fuel level (less then 300 kg) at time « 10 Nov 2011 11:04:06.000 UTCG »)

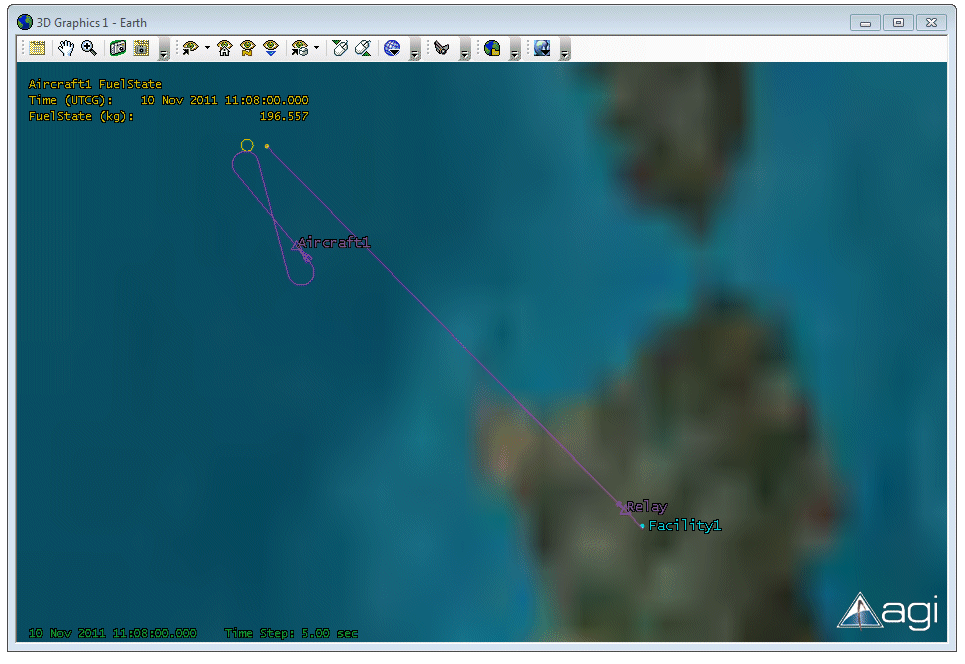

The second aircraft (relay) is heading towards Aircraft1 to take over.
