Simulink



Simulink model must be generated using the Simulink Coder (use to be Real-Time Workshop) before being linked with vsTASKER libraries.
Once the code is generated, it will be compiled and linked.
Unlink with Matlab functions, Simulink model does not produce a library. All code will be compiled every time simulation engine will be generated.

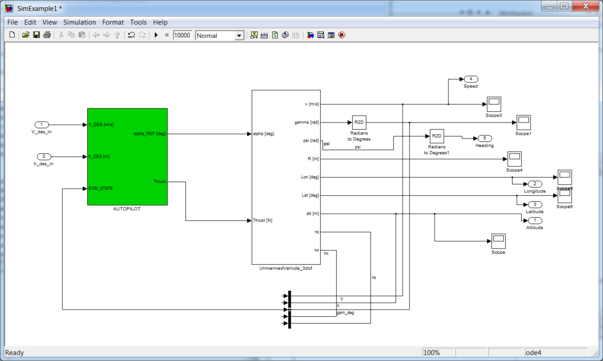

 Open or create you model inside Simulink (here, SimExample1.mdl)

Setup the Code in order to produce a code that is compatible with vsTASKER libraries and use a proper solver.

Tools::Code Generation::Options...

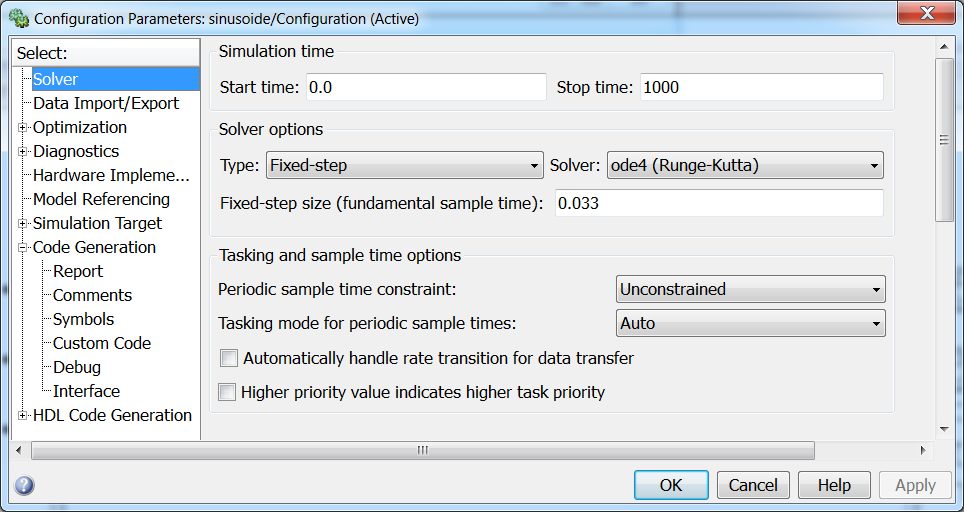

In this window, set the Solver and the Fixed-step value (in seconds) that must be coherent with the setting in vsTASKER for the Simulink object.

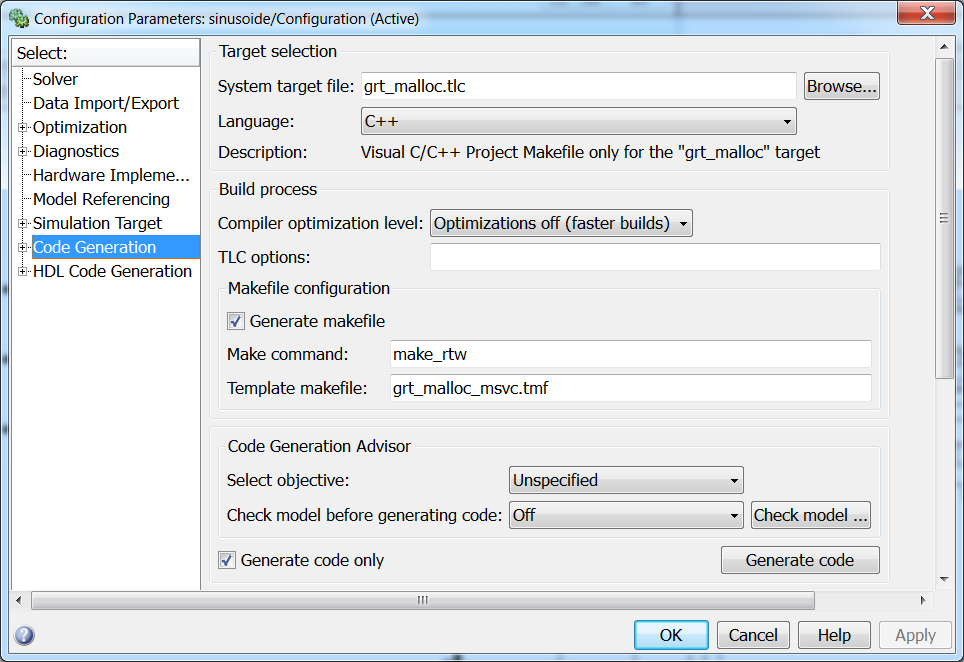

For the Code Generation, use the above settings (grt_malloc.tlc for the System, C++ for the Language and make_rtw for the Makefile)

The generated code will be put on the working directory of Matlab (in Matlab, for example: cd 'D:\VirtualSim\vsTasker\7\Runtime\Simulink\sinusoide' to set the working directory to point to the model sinusoide.mdl file; the generated code will then be there)
note: every time you do a change in the Simulink model, you will need to regenerate the C code and then, recompile the vsTASKER database to get a new simulation engine.

Create the Simulink object inside vsTASKER then set it.


I: is a macro that returns a pointer to the Input parameter structure of the Simulink model.
O: is a macro that returns a pointer to the Output parameter structure of the Simulink model.
