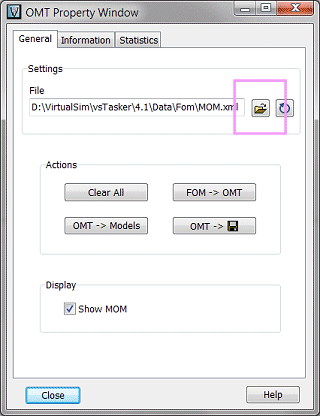

Go to the HLA::OMT panel, then select Properties and load a MOM file into Data/Fom directory (change the file type from OMT to XML)

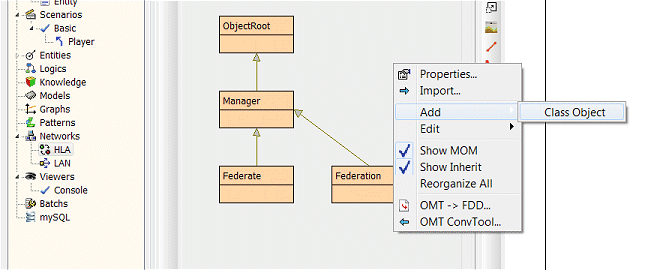

Now, let's define the Object myEntity:

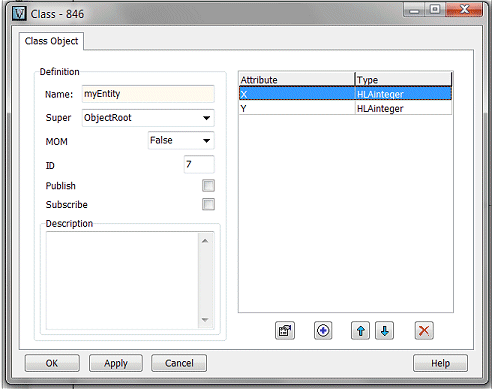

Double-click the object to get to the Property window.
Set the Name to myEntity.
Set the Super to ObjectRoot
Add the two Attributes by defining each of them: (Name: X, Type: HLAinteger), (Name: Y, Type: HLAinteger)

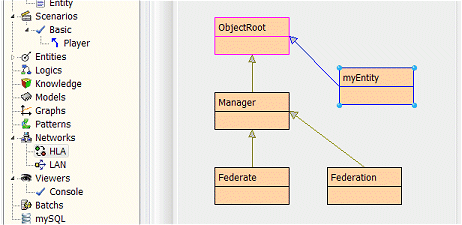

Now, we have defined the object myEntity:

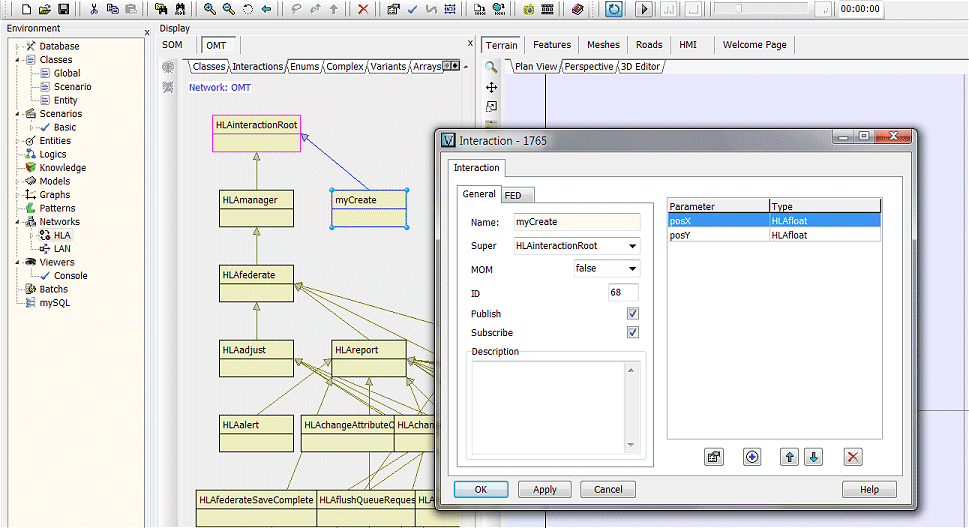

Let's do the same things for Interactions panel.
Now, right click the Diagram and select OMT -> FDD

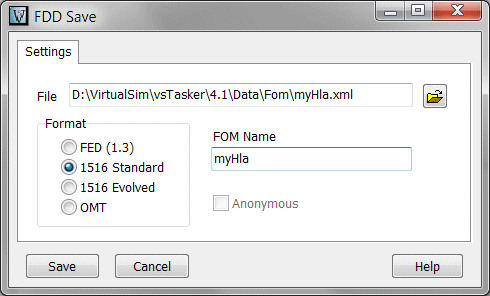

We will select 1516 FOM, give a name to the Federation and store it as an XML file in Data/Fom directory.

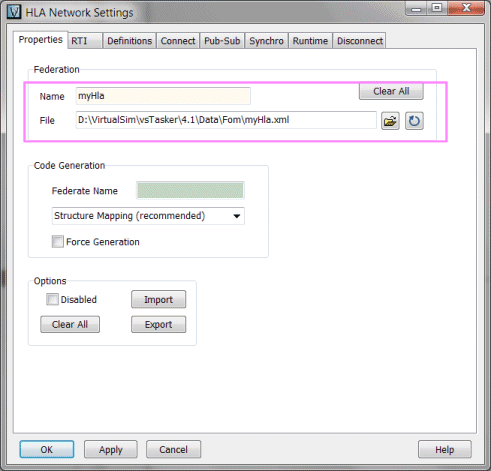

Now, we will load it (this is not automatic)
