Network Licensing
In order to use vsTASKER on a remote computer while leaving the Dongle key connected to one license server computer, it is necessary to follow these steps:
Server Side
Copy the /Tools/UsbLic directory to the server computer (the one holding the dongle key)
Launch install.exe :

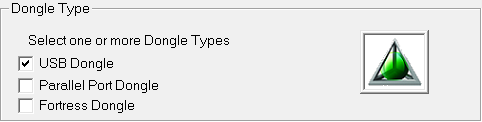

Select USB Dongle, then:
Select Server and finally:
You can then plug the dongle and let it connected (check that the driver installation by Windows succeed)
Client Side
Launch /Tools/UsbLic/install.exe:
Select USB Dongle, then:
Select Client

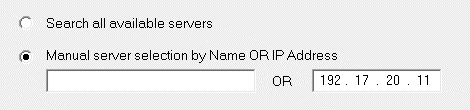

Then select the Server computer instead of letting the driver query the Network. If the dongle
is going to remain on the same server, doing so will make the connection faster.
Give the IP of the server computer (check that the firewall is not blocking all access), then OK
Finally:
Test the connection to the server using the following tool: /Tools/UsbLic/Troubleshooting/NetKeyMonitor.exeto see which servers are running and how many users they have.
Troubleshooting
If the number of sessions if reached (simultaneous users), the license cannot be acquired.
You might need on the server to put the process klserver.exe into the firewall exception
The default timeout period for a session is 540 minutes. To change that to 1 or 2 minutes, write the file windows/system32/KLTCPIP.DAT and put 1 or 2 inside (values in minutes)
In the client computer, you can write the file windows/system32/TCPIPSVR.DAT with the IP address of the server computer to use (i.e: 192.17.20.11)
