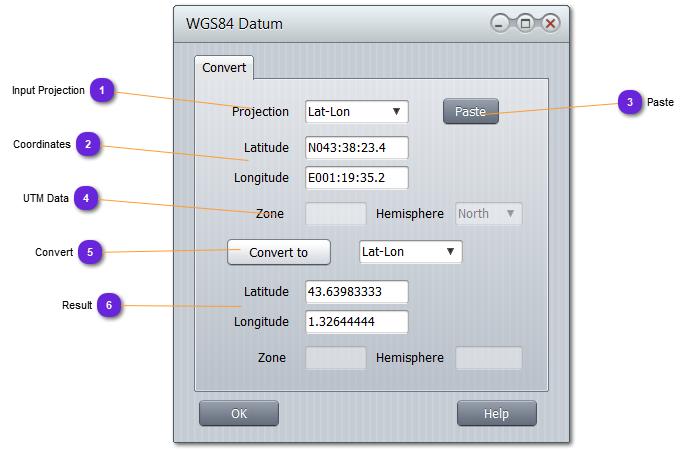

Pos Converter


Pos Converter
1

Input Projection

1. Input Projection
Select the projection type for the input coordinates:

  • XY Flat earth
  • Latitude/Longitude
  • UTM Standard
  • ECEF

2

Coordinates

2. Coordinates
Enter here the XY or Lat/Lon or Easting/Northing coordinates to convert.

3

Paste

3. Paste

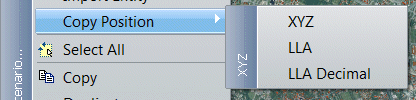

Use this button to paste here the copied coordinates on the map, using the right click option of the map:
4

UTM Data

4. UTM Data
When the Input Projection is UTM, Zone and Hemisphere data is enabled and mandatory for Easting and Northing entries.

5

Convert

5. Convert
Convert the input coordinates (above) to the selected output projection:

  • XY Flat earth
  • Latitude/Longitude in literal
  • Latitude/Longitude in degrees
  • UTM Standard
  • ECEF

6

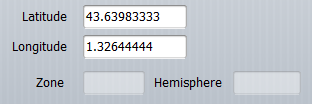

Result

6. Result
Display here the converted input coordinates in the selected Output Projection (5).
