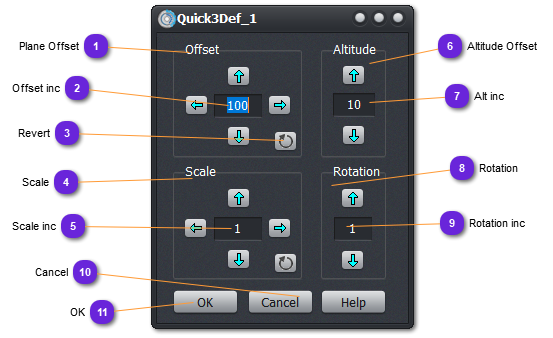

 Plane OffsetUse the four buttons to displace the terrain along the X (up and down buttons) and Y (left and right) axis.
Each press on the button add or subtract the offset value.
|
|
 Offset incOffset increment in meters
|
|
 RevertUse this button to revert to the Offset or Scale saved values (when windows was opened)
|
|
 ScaleThis panel controls the scaling of the terrain on the X (up and down buttons) axis and the Z (left and right buttons).
Each click on each buttons adds or subtract the scale inc value.
|
|
Value cannot be negative and cannot drop below 0.01
| |
|
 Scale incScale increment value to be added to the current value. If 1 is used, scale will change like 1, 2, 3, etc.
|
|
 Altitude OffsetUse the two buttons to move the terrain up or down along the Z axis.
Each press on the button add or subtract the offset value.
|
|
 Alt incAltitude increment in meters
|
|
 RotationUse the two buttons to rotate the terrain around its center. Up arrow increases angle, down arrow reduces, by the offset value.
|
|
 Rotation incRotation increment in degrees
|
|
 CancelRevert to the old values and cancel the settings.
|
|
 OKValidate the setting
|
|
