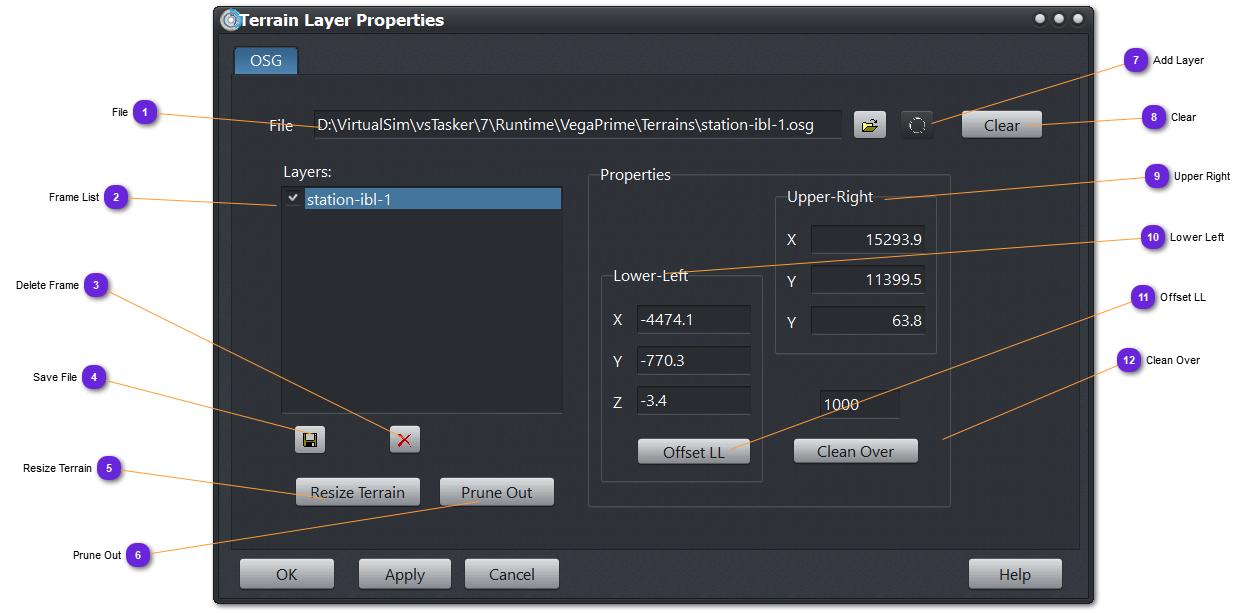

File Loaded OsgFrame file. Click on the field or use the open button on the right to select a file to load.
If an osg file is selected, it will be added to the current list, as a new frame.
If an osgf file is selected, the current layer will be first deleted.
Frame List List of all frame layers loaded from the OsgFrame file.
Select any of them for deletion or to display it's properties.
If a layer is selected, Offset LL and Clean Over functions will apply only to it.
Uncheck the layer to ignore it (no more displayed and processed)
Delete Frame Delete any selected frame above.
Save File Save the current OsgFrame db into a new file (or overwrite the current one).
This is mandatory after an offset or a cleaning ( or ) as the db file is separate from the scenario database.
Resize Terrain Use this button to move the terrain orgin to the center of the loaded OpenSceneGraph db, and dimension it accordingly.
Prune Out In case the terrain is manually resized to a portion of the OpenSceneGraph db, the OsgFrame db can be reduced by removing all vertex outside the terrain area.
Use Save button to overwrite the file and keep the change.
Add Layer Use this button to add a new .osg file into the current OsgFrame, as a new layer.
Clear Free the OsgFrame memory and remove all the layers.
This does not erase the file unless is called just after.
Upper Right Coordinates of the upper-right corner of the full OsgFrame db or the selected frame if any selected in the list.
Lower Left Coordinates of the lower-left corner of the full OsgFrame db or the selected frame if any selected in the list.
Offset LL Use this button to offset the lower-left corner of the OsgFrame db or the selected layer (if any) using the value in Lower-Left fields (10).

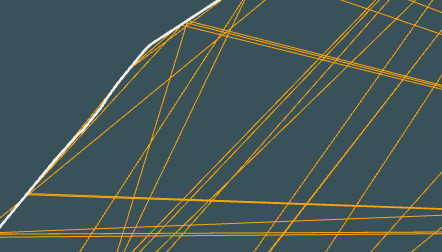

Clean Over Remove all vertex lines greater than the value (in m) expressed in the above field.
Units are the same as the database one.
Save the db after cleaning if need to keep the changes.
