Vertical View

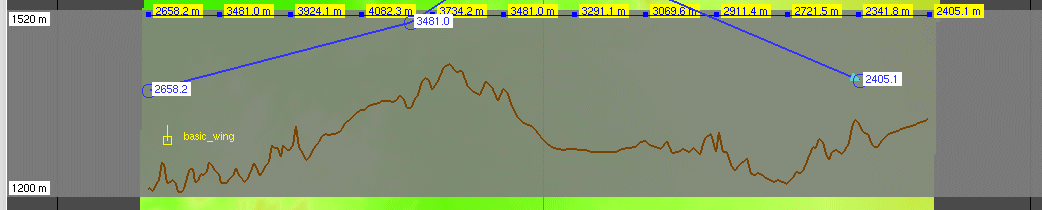

The vertical view displays a transparent panel on the terrain map to display the vertical terrain below a path or trajectory (when selected) or below entities.
Waypoint or Entity altitude are modifiable using the mouse, by selecting it and sliding the position up or down with the mouse button depressed.

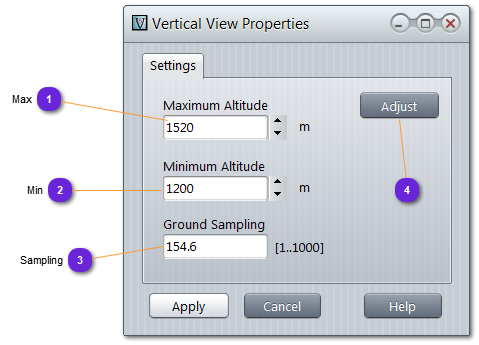

Vertical View
1

Max

1. Max
Maximum altitude to be displayed on the vertical view window (top).

2

Min

2. Min
Minimum altitude to be displayed on the vertical view window (bottom).

3

Sampling

3. Sampling
Number of divisions applied on the vertical slice to query the ground underneath.
The higher the value, the higher the accuracy of the terrain profile.

4

Adjust

4.
Automatically compute the best values for Max, Min and Sampling, according the terrain size and height.
