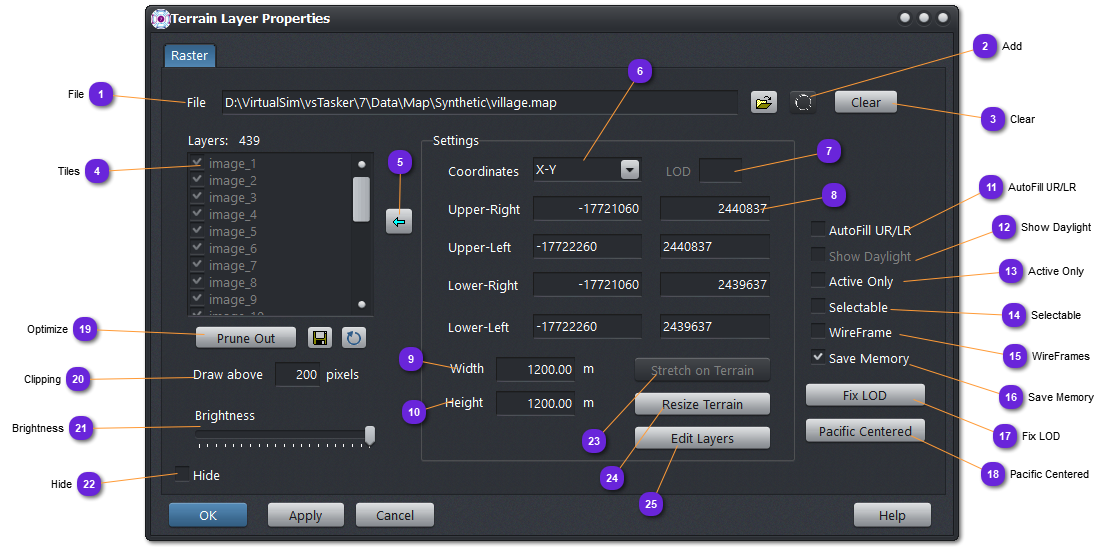

Properties

Name of the raster file or tiled map.

Supported formats:



Use this button to add another tile to the current list.

This addition must be save using button in order not to be lost.

The added tile must also be resized accordingly (8).

Free the memory from the actual loaded raster map.



If a tiled map is loaded in (1), list all the tiles used for the dynamic map.

If only one raster is loaded in (1), the unique tile is listed here.

When an entry is checked (x), it will be displayed on the terrain map.

When an entry is selected (i.e.: t_1024_1024), Settings box (right) will be filled with the current tile dimension (corners coordinates).

When data of Setting box has been changed, use this button to overwrite the selected tile with the modified data (lost otherwise).

Select here the coordinate system format you prefer for the data of Settings box to be displayed.

When it gets to update the data (if allowed), XYZ or LL Decimal are the most convenient format.



Tiled maps can be layered with Level of Details (LoD) that will hide or display them according to the zoom level (and the effective size on the display for the tile).

You can change the LoD of the selected tile here.



For the selected tile in (4), list here the coordinates of the four corners of the tile, in the coordinate format selected in (6).

The first text field (on the left) is the X or the Latitude, the second (on the right) is the Y or the Longitude.

According to the type of raster loaded, corners can be edited or read-only. Do not forget to update with (5) if any change.



Width of the selected tile. Read-only.



Height of the selected tile, Read-only.



When checked, setting the lower-left and upper-right corners are enough to define a perfect rectangle area for the tile as the two other corners are automatically computed.

If unchecked, all corners must be set.



Not available yet.



If checked, will rebuild the list to keep only the tiles displayed on the map, either due to the zoom level or to the clipping.

Will filter out invisible tiles from the list.



If checked, any tile on the map can be selected with the mouse.



When checked, tiles will not be textured, only outlined.



When checked, tiles textures that are not displayed (hidden, clipped out, etc.) are removed from the memory. This option is saving the memory but can slow down slightly the display at zoom and panning as the textures will be loaded from the disk for all new fresh tiles.



Use this button when the map seems screwed up, mixing big tiles with small one. This can happen when the building of a layered tiles map has not followed the rules.

Save the map file (18) after the fix.



Use this button when the terrain is on the pacific side, around the counter-meridian.



Will remove all tiles that fall outside the terrain area.

Use the button to overwrite the database file (1) after optimization.

Use the button to revert to the database file (1). Same as Cancel.



Set here the maximum size of a tile on the display before being replaced with higher resolution tiles (if available).

This is only for multi-layers tiled maps.



Set the overall brightness of the raster map or tiles. Left is dark, right is full bright.



If checked, the raster layer will not be displayed on the terrain map.



Use this button to resize the raster map (outer corners) to the actual terrain size.

This is useful to apply a precisely cut map whose corner coordinates are known, on a terrain.

Use this button to resize the terrain to the actual size of the raster map (if single) or by the outer corners of a tiled map.



Popup the raster map editor window.
