vsTASKER does not support all functionalities and has reduced the scope to exported databases from Bohemia Simulation VBS tool.
Importing an SVG file is straightforward.
It can be done directly from vsTASKER GUI or from the TerrainBuilder tool (recommended option).
How to Use

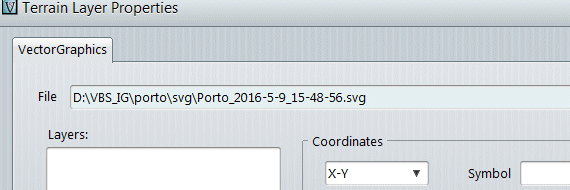

First, open the SVG property window:
Then import your raw SVG file:
and use the button to add it as a new layer.
Once the import is successful, you will see the layer in the list (and the file name is removed from the text field.
You can repeat this process with any SVG raw file you may combine.

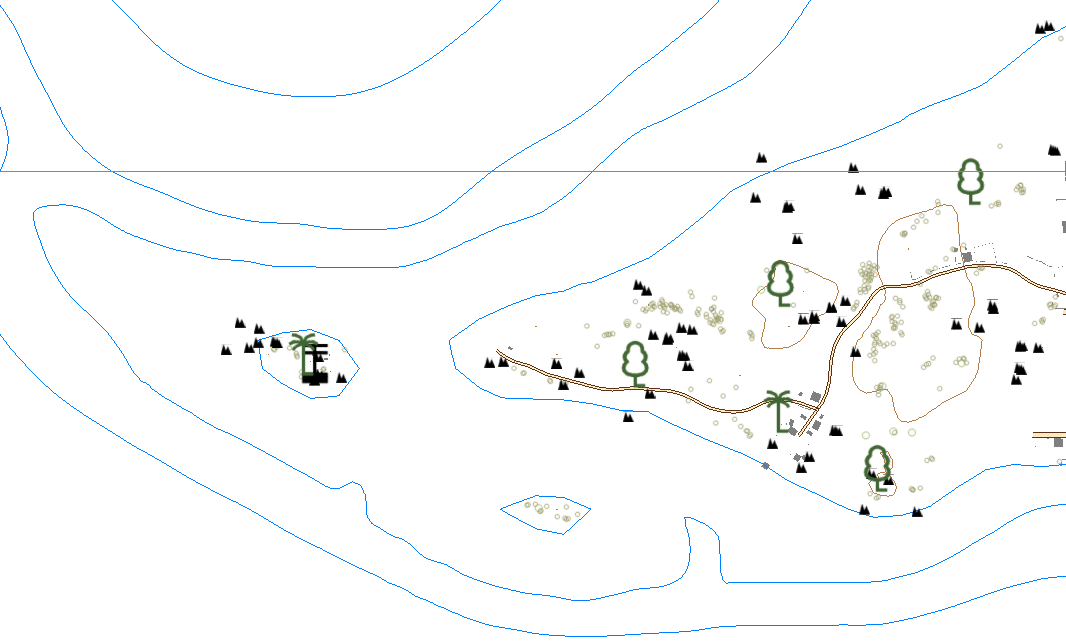

Now, reposition and resize the terrain to the imported SVG coordinates:
To save the SVG database (all layers) into a vgm proprietary format, open the file selector (or type the full path and name with the .vgm extension) and use the save button:
To offset and reposition the SVG database or some layers, refer to the Property Window.
