On Time


When a specific or random time is elapsed or matches the current simulation time, the Point is triggered.

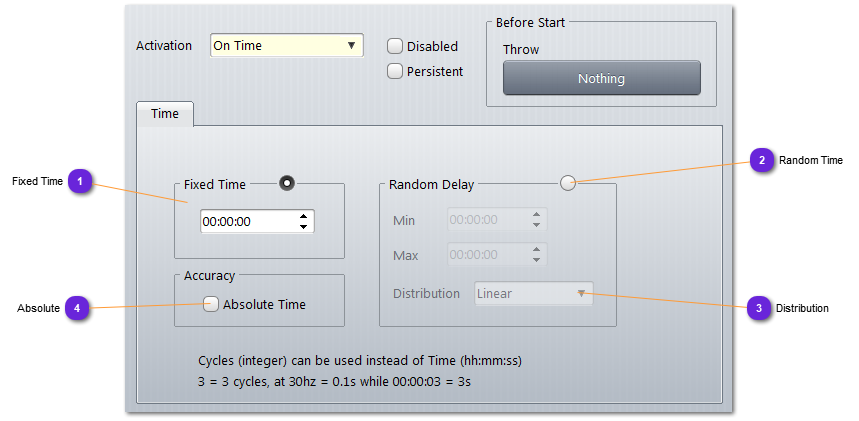

On Time
1

Fixed Time

1. Fixed Time
When Fixed Time is selected, as soon as the specified time is elapsed, the Point triggers.
For i.e: if the Point is inside a Logic with a Fixed Time set to 10 seconds. If the Logic is triggered 1 minute after the simulation start, then the Point will be triggered 1 minute 10 seconds after the simulation start.

2

Random Time

2. Random Time
A random value (according to the Distribution) will be taken at Point initialization. This random value between Min and Max values will act as Fixed Time.

3

Distribution

3. Distribution
Linear: Random values are distributed equally between Min and Max
Gaussian: Random values are distribution according to a Gaussian curve between Min and Max. Mid-term has the highest probability of occurrence.

4

Absolute

4. Absolute
If this option is checked (for Fixed or Random Time), the specified Time is according to the simulation time.
Point triggers when the simulation time is greater than the given fixed or random time
