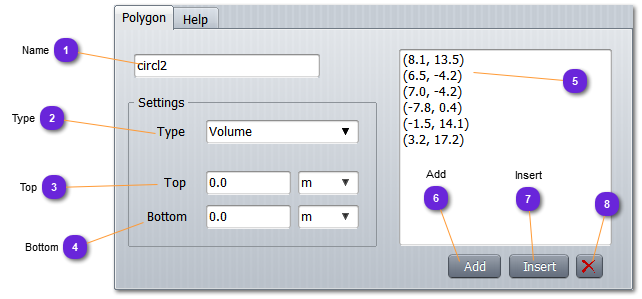

Polygon


Polygon
1

Name

1. Name
Name of the area in the zone.
The area name is useful when having to delete or access from user code some specific areas.
2

Type

2. Type
Select here the type of volumetric shape:
  • Ground: polygon clamped on the ground.
  • Volume: 3D volume with a top and bottom, to make it floating.

3

Top

3. Top
Set here the top altitude of the volume.

4

Bottom

4. Bottom
Set the bottom altitude of the volume.

5

Point

5.
List of all the points of the polygon.

6

Add

6. Add
Add a new point at the end of the list.

7

Insert

7. Insert
Insert a new point after the selected one in the list.

8

Delete

8.
Suppress the selected point.
