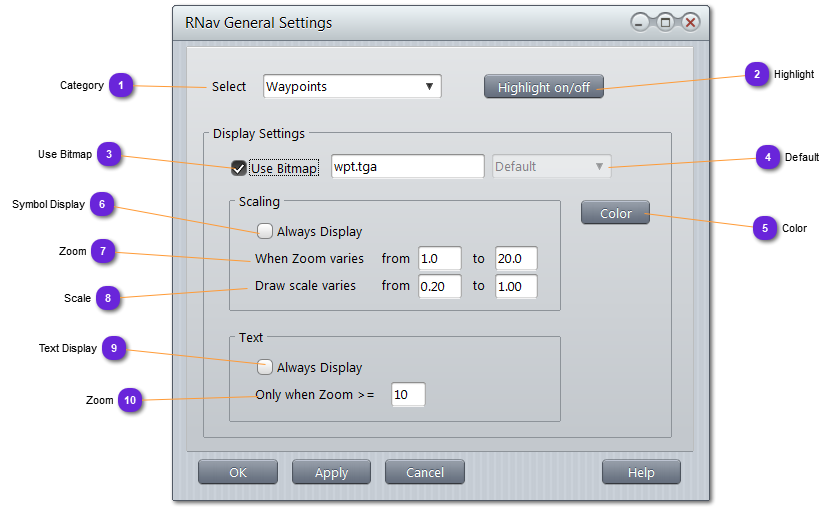

This window is used to control the drawing of all RNav items (records) on the terrain map.
They are organized by categories. It is not possible to set any particular record, only a category.
Category Select which category of RNav item to set.
Highlight Depress to force display on the map all records of the selected category, regardless of the (6) and (9) settings. Depress again to revert to normal drawing.
Use Bitmap If checked, the bitmap mentioned in the text field will be used instead of the predefined drawing (4).
Default If Use Bitmap (3) is unchecked, use this drop list to select the predefined symbol to use for the selected category:
Default : vsTASKER will automatically select the standard drawing or raster for the category
Color Open the color selection box to select the color to use for text and symbol.
No effect on bitmaps.
Symbol Display When checked, category will be displayed whatever the zoom level.
If unchecked, display of the bitmaps/symbols depends on the zoom level (automatic).
Zoom If automatic display (6), the category will be displayed if terrain zoom is between the from and to boundaries.
According to the scenario size, it might be useful to adjust the boundaries according to the real zoom and the density of the category.
Scale Set here the scale of the drawing (bitmap or symbol) regarding the zoom level.
Value in text fields are between [0..1] and shall be compared with the zoom level of line above (7).
In the sample above, for a zoom value up to 1 , scale will be 0.2 and for zoom above 20 , scale will be 1 .
Linear interpolation is applied between bounds.
Text Display When checked, item label will be displayed whatever the zoom level.
If unchecked, display of the label depends on the zoom level (automatic).
Zoom If automatic display is set (9), when zoom is above the text field value, the item label is displayed. Hidden when the zoom level is below.
