RNav


RNav (Area Navigation) is a database layer that provides airborne navigation records (items) for scenarios to do ATC simulation using ARINC 424 standardized data.
vsTASKER also provides capabilities to update the database and create own records, equipments with user defined data.

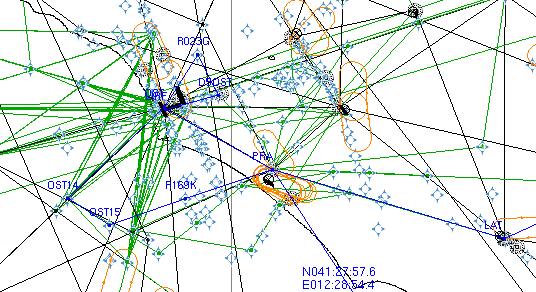

When loaded, RNav database can be displayed on the map.
See RNav in Navigation environment to see how to use Flight-Plans for making entities navigating in the network.

Component using RNav: FlightPlan

RNav can only be defined (and modified) under the RNav panel:



Add an airport (record) on the database

Add a waypoint (record) on the database

Add a navaid (record) on the database

Add an holding (record) point on the database


Properties: open the RNav database property window.

Settings: open the settings window.

Edit: select which RNav record type to list (can be changed from the drop down menu there)


All new records added to the database will be stored aside from the ARINC RNav database loaded by vsTASKER.
They will belong to the current scenario database until merged (see Save option here)

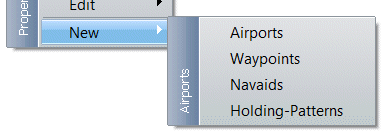

Airports:
Waypoints:
Navaids:
Holding-Patterns: Toolbar shortcut (see above)


Edit: call the record property window for the RNav element selected.

Delete: Remove from the database the selected element.
