Entities


Entities
1

List

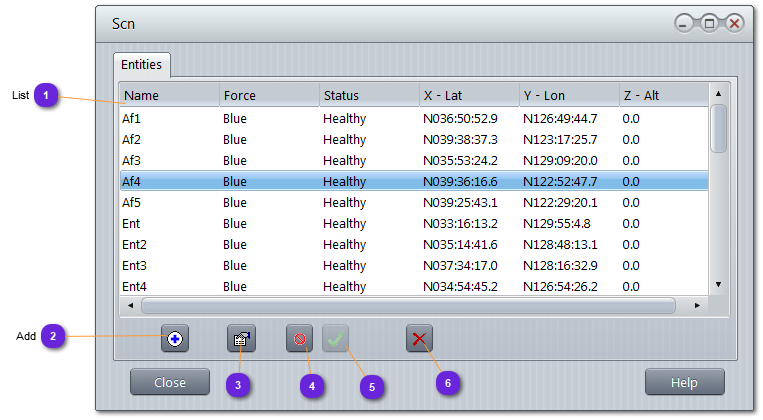

1. List
List all entities belonging to the scenario, including the disabled ones (status is showing Disabled and they are grayed out on the map).
Select one to grab focus (selection).
Double click to open the selected entity hook window.

2

Add

2. Add
Use this button to add a new entity in the scenario.

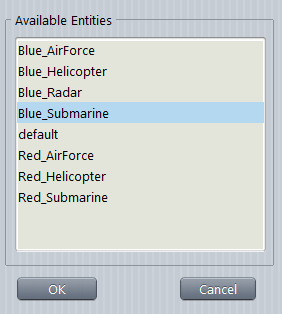

A list of all catalog entities is then displayed.
Cancel will forget the add, selecting one in the list and pressing OK will change the mouse cursor to a + for the position. Click on the terrain map where the new entity should be placed.

3

Hook Window

3.
Display the hook window of the selected entity (same as double clicking the list)

4

Disable

4.
If the selected entity is running (activated), depressing this button will disable it (inactivate).

5

Enable

5.
If the selected entity is not running (deactivated), depressing this button will enable it (activate).

6

Delete

6.
Use this button to remove the selected entity from the runtime scenario. A question dialog will request confirmation.
