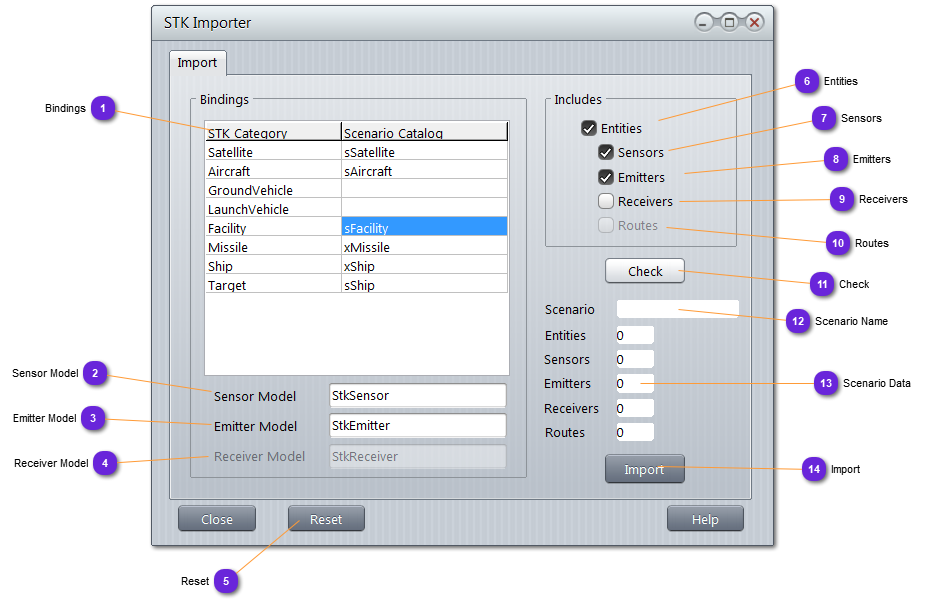

STK Importer


STK Importer
1

Bindings

1. Bindings
User must pair for each STK Category the corresponding Catalog Entity in vsTASKER.
With this binding, whenever an STK object of this category will be found in the STK scenario, the importer will create a vsTASKER entity at the same location and of the same type, using the corresponding Catalog Entity.

When the STK category is not paired, the object will not be imported (and a warning message will be issued).

2

Sensor Model

2. Sensor Model
Name here the component that will be used as the interface between the STK Sensor and the vsTASKER environment.
vsTASKER provides built-in components for basic interfacing.

3

Emitter Model

3. Emitter Model
Name here the component that will be used as the interface between the STK Emitter and the vsTASKER environment.
vsTASKER provides built-in components for basic interfacing.

4

Receiver Model

4. Receiver Model
Name here the component that will be used as the interface between the STK Receiver and the vsTASKER environment.
vsTASKER provides built-in components for basic interfacing.

5

Reset

5. Reset
Tries to set default (factory) values to most of the window fields.

6

Entities

6. Entities
When this option is enabled, the Importer will look for all STK scenario entities.

7

Sensors

7. Sensors
When this option is enabled, the Importer will add all STK Sensors belonging to each imported entity.
The Sensor Model (see 2) component will be used.

8

Emitters

8. Emitters
When this option is enabled, the Importer will add all STK Emitters belonging to each imported entity.
The Emitter Model (see 3) component will be used.

9

Receivers

9. Receivers
When this option is enabled, the Importer will add all STK Receivers belonging to each imported entity.
The Receiver Model (see 3) component will be used.

10

Routes

10. Routes
Not available

11

Check

11. Check
This button will run the importer with the current settings and will display the result of the queries in the text field below.

12

Scenario Name

12. Scenario Name
When Check (or Import) button is depressed, the Importer will query the running instance of STK and will display here the STK scenario name.

13

Scenario Data

13. Scenario Data
When Check (or Import) button is depressed, the Importer will query the running instance of STK and will list here the total numbers of listed items found.

14

Import

14. Import
This button will run the importer with the current settings and will add in the current vsTASKER scenario all STK available entities.
