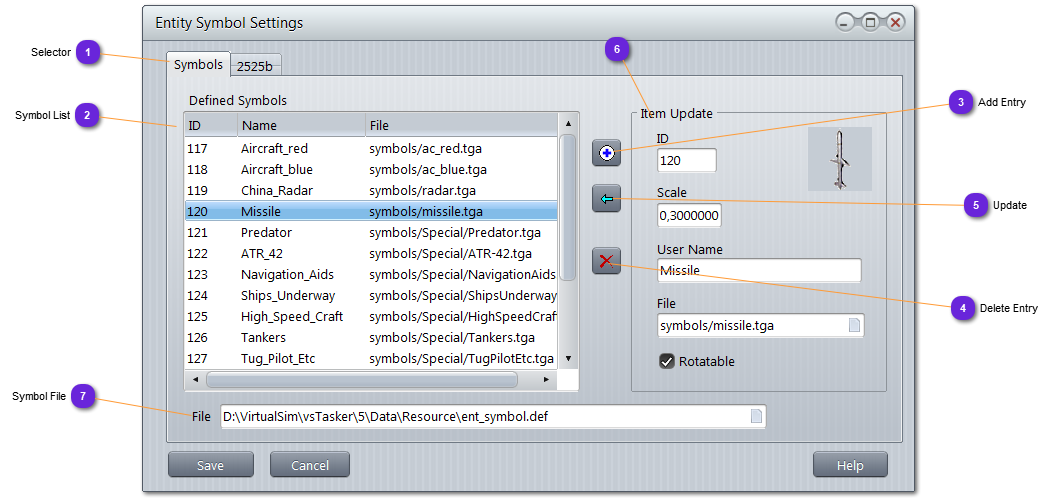

Entity Symbols

Selector

Select which database you are going to define.

They are all structured the same way, reason why they share the same window.

The file loaded are ent_symbol.def (for symbols) and ent_2525b.def (for 2525b) in Data/Resource.

Each of them look for files in Data/Resource/Symbols or Data/Resource/2525b directories.

This list displays all symbols extracted from the database file according to selector setting.

To add a new entry. Set the name and the file before using

to update the list.

To delete the selected entry. Be careful that this action cannot be undo. All entities using this symbol will lose the reference.

Use this button to update the entry with the modified fields in Item Update block.

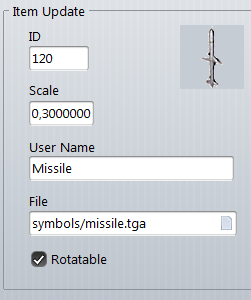

Select for adding/modify an item in/from the Defined Symbols list.

ID: unique ID for the symbol definition.

User Name: name of the symbol. Do not use space.

Scale: scale applied to the bitmap. 1.0 is the normal size. 0.5 is half the size.

File: location of the bitmap TGA file.

Rotatable: if checked, the bitmap will rotate according to the entity heading.

Select here the definition symbol file you intend to use in your simulation.

User can create his own or expand a default one.
