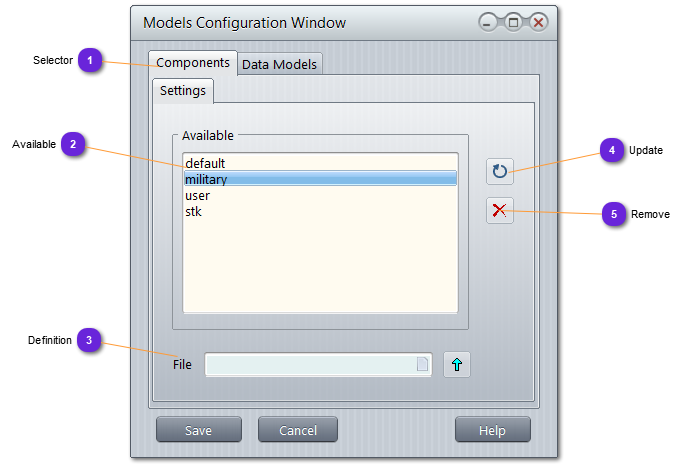

Model Configuration


Model Configuration
1

Selector

1. Selector
Select which package you are going to define.
They are all structured the same way, reason why they share the same window.
The file loaded are located by default in /Model directory and suffix is .cpt for Components and .mdl for Data Models.

2

Available

2. Available
This list shows all the definition files you want to load to build the Component library.
By library, we mean a set of all items available for being moved to Model library (from file to database)

3

Definition

3. Definition
Use this field to add another definition file to the current list. vsTASKER will build the library based on the content of all these definition files.
A library restrict what can be used by vsTASKER, according to licensing availability or third party software environment.
For example, if STK (from AGI vendor) is not used, there is no need to import the STK definition file.
Same thing for military (of defense) component library if vsTASKER is used only for ATC.
4

Update

4. Update
Use this button to force the reload of all the definition files and the rebuild of the Component/DataModel library.
This can be useful when the definition file is modified.

5

Remove

5. Remove
Select an entry in the Available list and remove it from the library. The definition file associated is not deleted, just the reference is discarded.
