During runtime, Flight Plan can be monitored and changed. It is the only way to change the course of an aircraft in a managed mode.

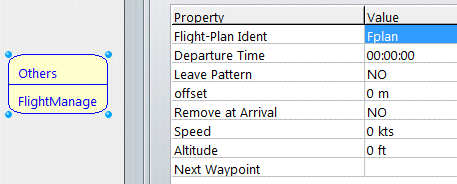

During the flight, select the aircraft on the map, select then the FlightManage component (in its behavior pane) and double click on it.
On the displayed value interface, change the following value, then press button.
Leave Pattern: runtime command that force the aircraft, if cycling into an holding pattern, to manually leave it and continue
Offset: distance in meters aside from the Flight Plan line. Positive values stand to right offset; negative for left.
Speed: speed offset from the flight plan defined one (this value is for runtime)
Altitude: altitude offset from the flight plan defined one one (this value is for runtime)

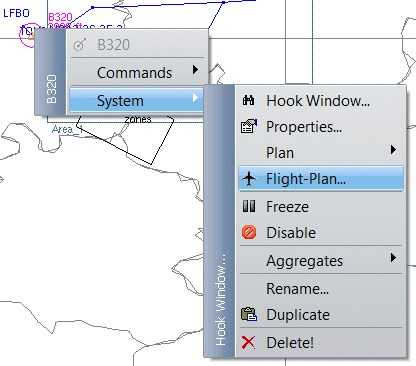

To display the Flight Plan and monitor it, select the aircraft, right click and select :

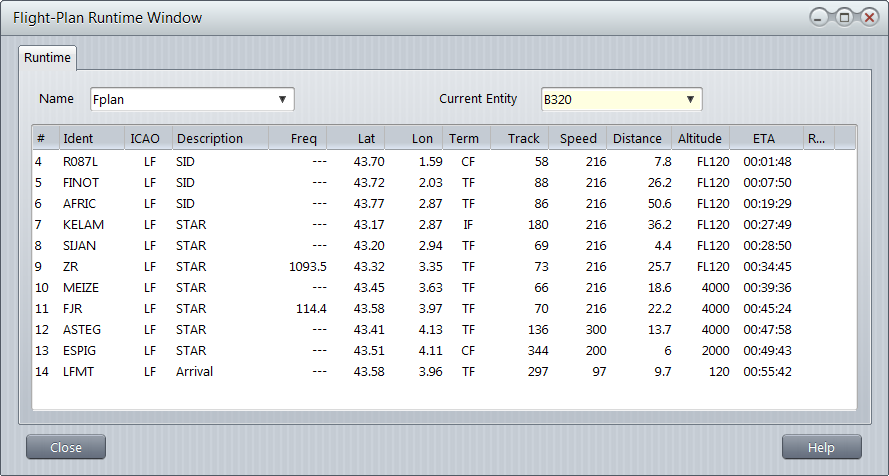

The runtime window lists the remaining flight plan with continuous updated data like Distance and ETA
|
|
A Flight Plan cannot be changed during runtime.
|
