Federate Item

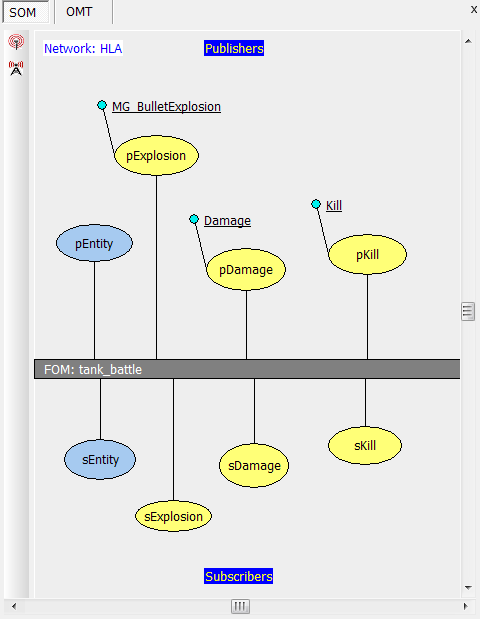

This window is used to setup the federate object (as a Publisher or Subscriber) and the way it is going to act in the Federation.
Even is vsTASKER instance will be seen as a unique Federate in the simulation, internally, many Federate [objects] will run as publishers or subscribers.
Popup Menu
Settings: call the HLA property window
Add Object: create a FedItem object in publishing or subscribing mode according to the position of the mouse on the diagram (top for Publisher and bottom for Subscriber)
Insert: list all objects imported from the Federation file or the OMT definition
Import: list all exported FedItem objects in Data/Shared directory
Add Interaction: create a FedItem interaction in publishing or subscribing mode according to the position of the mouse on the diagram (top for Publisher and bottom for Subscriber)
Insert: list all interactions imported from the Federation file or the OMT definition
Import: list all exported FedItem Interactions in Data/Shared directory
Select All: select all FedItems (useful for deletion)
