HLA

vsTASKER can connect to several RTI maker and is able to generate specific code according to the target RTI and the version chosen.

Going HLA or connecting to an existing Federation becomes straightforward as diagrams and other abstractions are used to cover the difficulty of RTI programming.

With the OMT builder, user can even define from scratch their own Federation.

It is also possible to use vsTASKER simulation engine as an external model (imported as a Component, a DLL or an external library) to go HLA.

The same way, vsTASKER can be used as a bridge from LAN only capable system to HLA, drastically reducing the development time.

HLA is an add-on in vsTASKER. The simulation engine and structure is not designed for HLA. Thus, one should not expect the full coverage of all services and RTI capabilities, neither a out-of-the-box support of some HLA federations (like RPR-FOM).

Environment

Add a Object FedItem

Add an Interaction FedItem

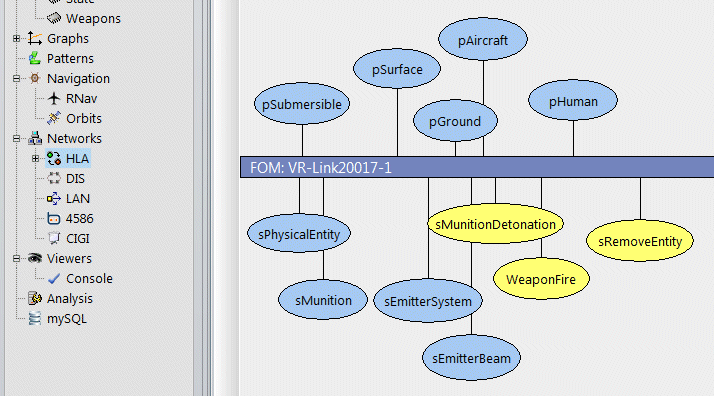

Click on the toolbar icon and drop the object into the Publisher or Subscriber zones.

Right click on the background diagram bring a popup menu to do the same thing.

Refer to the Tutorial document to learn how to develop your first HLA simulation.
