OMT

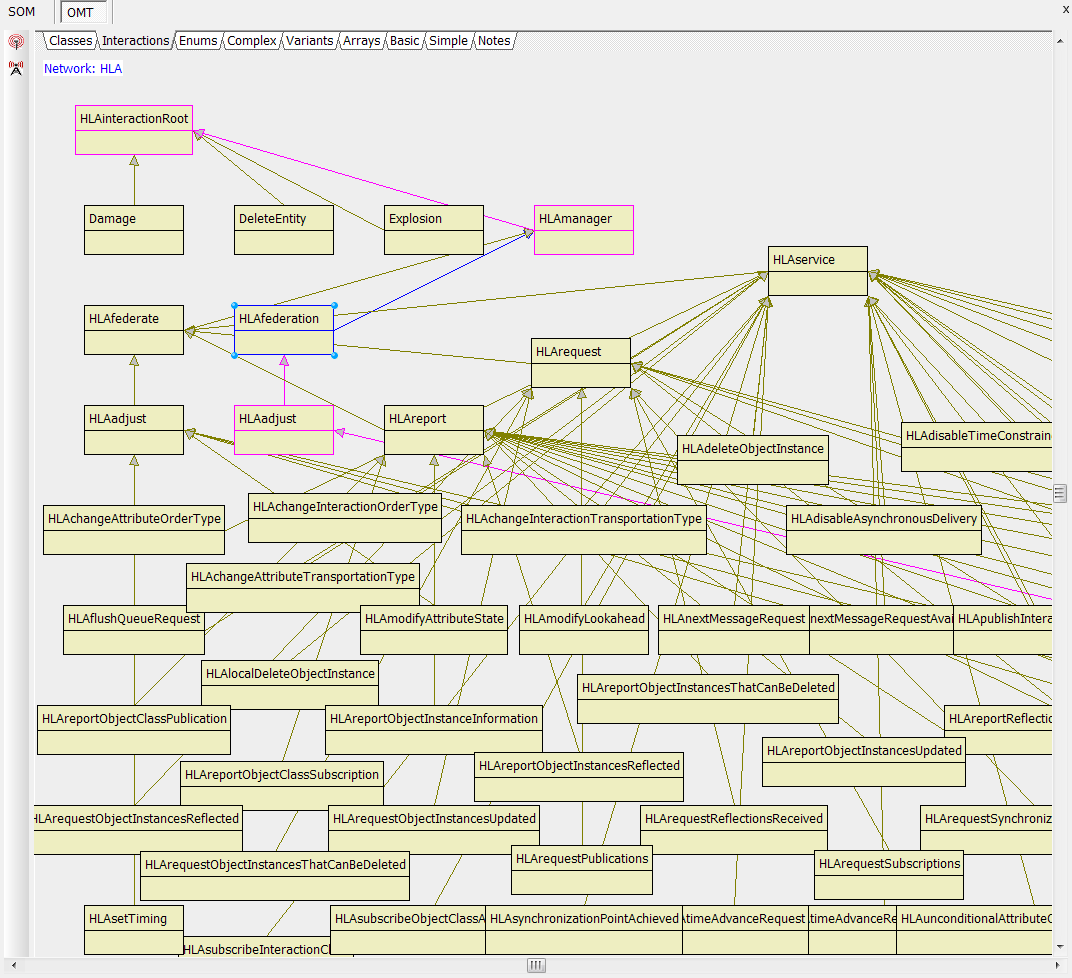

vsTASKER offers a visual OMT editor that can be used either for viewing Federation contents, modifying some or to create Federations from scratch.

With its FDD converter, it is then possible to upgrade a Federation and update the SOM in a looping process that drastically speed up the simulation development process.

Also, the visual paradigm greatly helps debugging and understanding a HLA simulation with complex Federations.

Popup Menu

Properties: call the property window

Import: not available yet

Add: list all OmtItems that can be added in the selected category.

Edit: list all OmtItems already defined in the selected category.

Show MOM: display or hide the root MOM objects user cannot modify

ShowInherit: display or hide the inheritance links

Reorganize All: try to organize all icons into a grid

OMT -> FDD: call the formatted saver

OMT ConvTool: call the converter tool

Select All: select all OmtItems in the category (useful for deletion)
