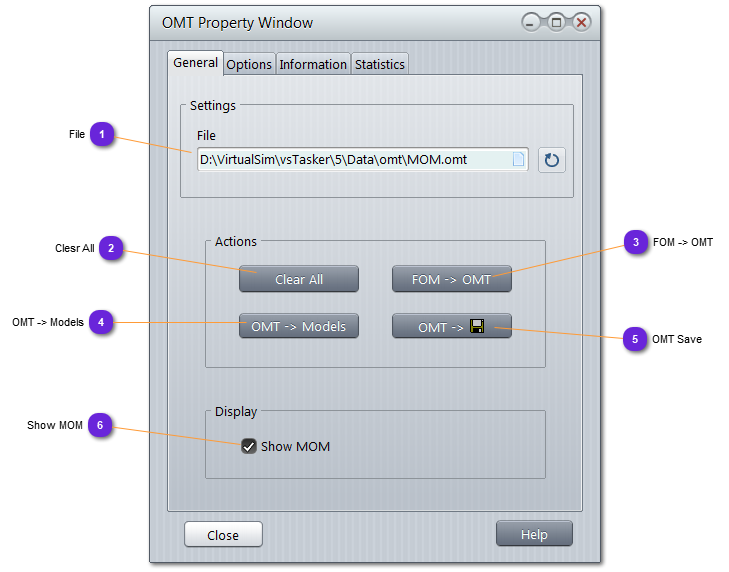

 File
Specify here the base MOM file that describes the minimum system definition of a Federation.
-
You can use the MOM.omt file in /omt directory for 1.3 federations. -
You must use the MOM.xml file in /fom directory for 1516 federations.
Using  , the file is reloaded, discarding all user changes in the OMT environment.
|
|
 Clesr All
Removes all OMT data structure from the database.
|
|
 FOM -> OMT
Rebuild the OMT data structure from the loaded FOM.
In case of a 1.3 Federation, types will be minimum.
1516 Federations provides maximum data information.
|
|
 OMT -> Models
|
|
 OMT Save
|
|
 Show MOM
When selected, system objects (management) are displayed on diagrams.
Most of the time, they do not bring anything to the user.
When OFF, only user defined data structures are displayed for edition.
|
|
