Information


The Information panel lists the Object model identification table is done to associate important identifying information with the HLA object model.
It is important to include a minimum but sufficient degree of meta-level information in the object model description. For instance, when federation developers wish to pose detailed questions about how a federate or federation was constructed, including point-of-contact (POC) information within the HLA object model is extremely important.

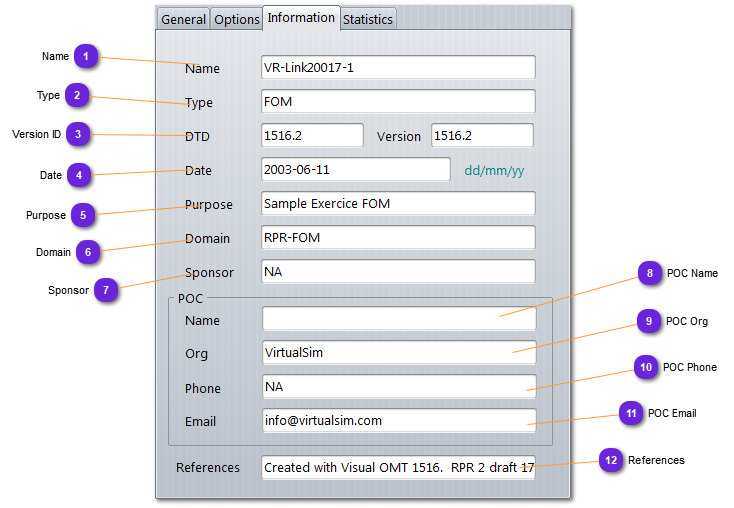

Information
1

Name

1. Name
The name assigned to the object model

2

Type

2. Type
This field shall specify the type that the object model represents; valid values are
  • FOM: the object model describes a federation
  • SOM: the object model describes a federate

3

Version ID

3. Version ID
The version identification assigned to the object model

4

Date

4. Date
This field shall specify the latest date on which this version of the object model was created or modified. The modification date shall be specified in the format YYYY-MM-DD (e.g., 1999-04-15)

5

Purpose

5. Purpose
The purpose for which the federate or federation was created; may also contain a brief description of key features

6

Domain

6. Domain
This field shall specify the type or class of application to which the federate or federation applies. The following values may be used for this field, although other values are also valid:
  • Analysis
  • Training
  • Test and Evaluation
  • Engineering
  • Acquisition

7

Sponsor

7. Sponsor
The organization that sponsored the development of the federate or federation

8

POC Name

8. POC Name
The point of contact (POC) for information on the federate or federation and the associated object model; shall include an honorific (e.g., Dr., Ms., etc.) or rank, first name, and last name

9

POC Org

9. POC Org
The organization with which the POC is affiliated

10

POC Phone

10. POC Phone
The telephone number for the POC

11

POC Email

11. POC Email
The e-mail address for the POC

12

References

12. References
This field shall specify pointers to additional sources of information. For example, documents that describe save/restore semantics, time management strategies, or other relevant federation policy decisions may be identified through this field.
NA shall be entered when no such references are appropriate.
