Works only for HLA1516 and Evolved.

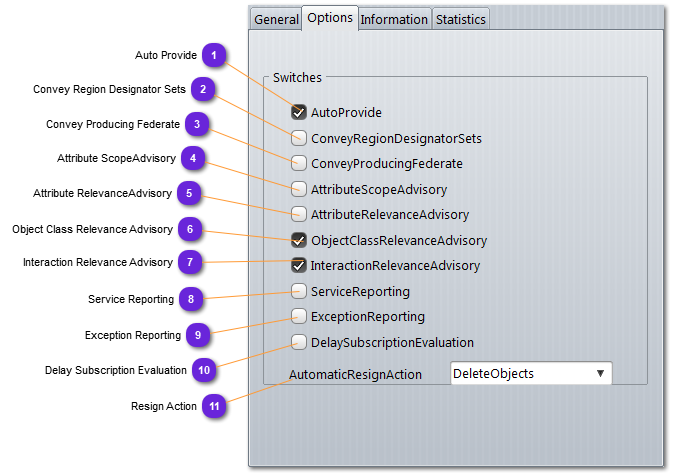

Lists all the switches defined in the Federation. Configuration of RTI activities performed on behalf of a federate
Can be changed by the user.
Modified settings will not be saved on the local database.
User must generate a new FDD using the Saver window to export the changes.
Auto Provide Should the RTI automatically solicit updates from instance attribute owners when an object is discovered.
Convey Region Designator Sets Should the RTI provide the optional Sent Region Set argument with invocations of Reflect Attribute Values and Receive Interaction.
Convey Producing Federate Not available in HLA 1.3 or 1516-2000. Cannot be required by federates in a mixed HLA 1.3/2000/2010 federation.
Attribute ScopeAdvisory Should the RTI advise federates when attributes of an object instance come into or go out of scope.
Attribute RelevanceAdvisory Should the RTI advise federates about whether they should provide attribute value updates for the value of an attribute of an object instance.
Object Class Relevance Advisory Should the RTI advise federates about whether they should register instances of an object class.
Interaction Relevance Advisory Should the RTI advise federates about whether they should send interactions of an interaction class.
Service Reporting Should the RTI report service invocations using MOM.
Exception Reporting Used mainly for debugging.
Delay Subscription Evaluation The federation execution-wide Delay Subscription Evaluation switch indicates how the RTI shall filter a TSO or RO message based on the receiving federate's known subscriptions. The setting for this switch shall come from the FDD at federation execution creation time. This switch setting shall not be modifiable during a federation execution.
Resign Action Select from the drop down list what shall be the RTI action when federate resign from the federation.
