Radar Arrangement



Let's open radar_arrangement sample.

Select in the main toolbar, then open radar_arrangement.db in data/db/samples/analysis/radar_arrangement

Once loaded, your application will looks like below:

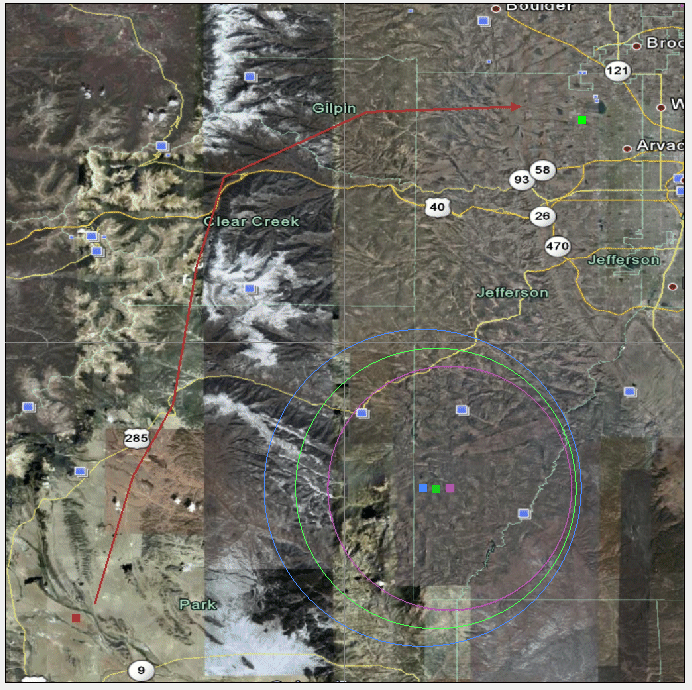

Monte Carlo simulation trying to position the three radar to detect at best the incoming missile doing terrain hugging flight.



Missile speed is 300m/s.

Radar detections are subject to terrain occultation (LOS).

The batch object computes the position of the radars at each iteration according to some predictive rules.



Compile and run the simulation.

When the OpenGL windows is displayed, start the simulation.

At each run, vsTASKER will position the three radars according to various criteria then, the missile will be launched and it will follow the trajectory on the horizontal axis, and the terrain on the vertical axis. Detection time will be added to rank the radar positioning.



Click the M button (top toolbar) to run the simulation at maximum speed.

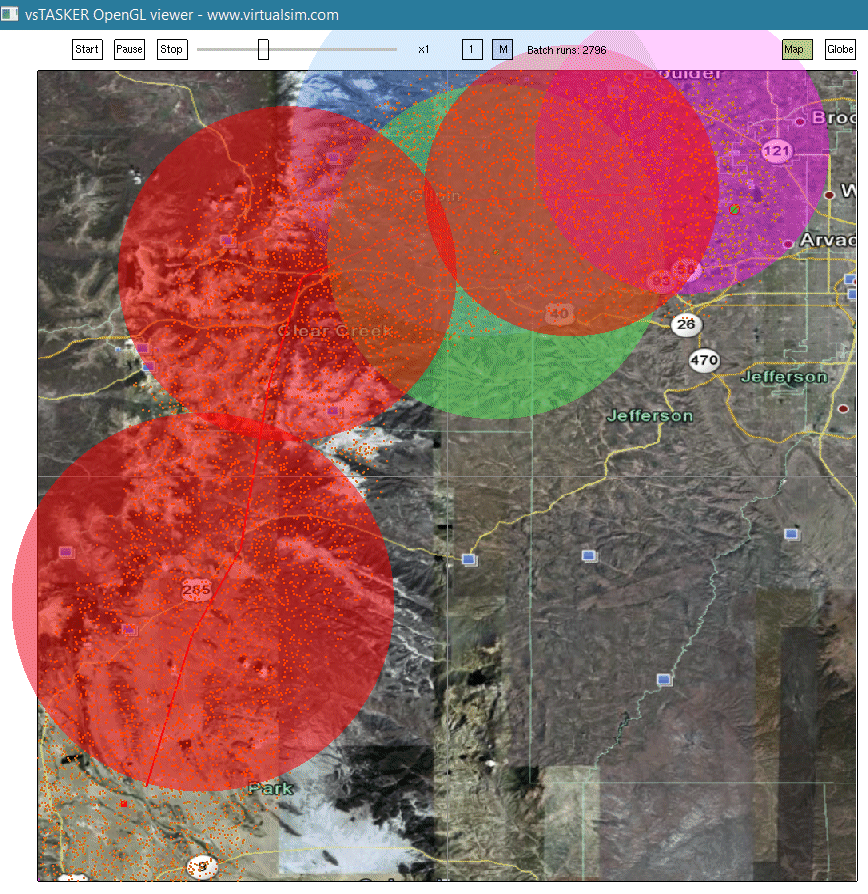

During the simulation, the best position are shown it red.
All the dots show the radar position tested.
