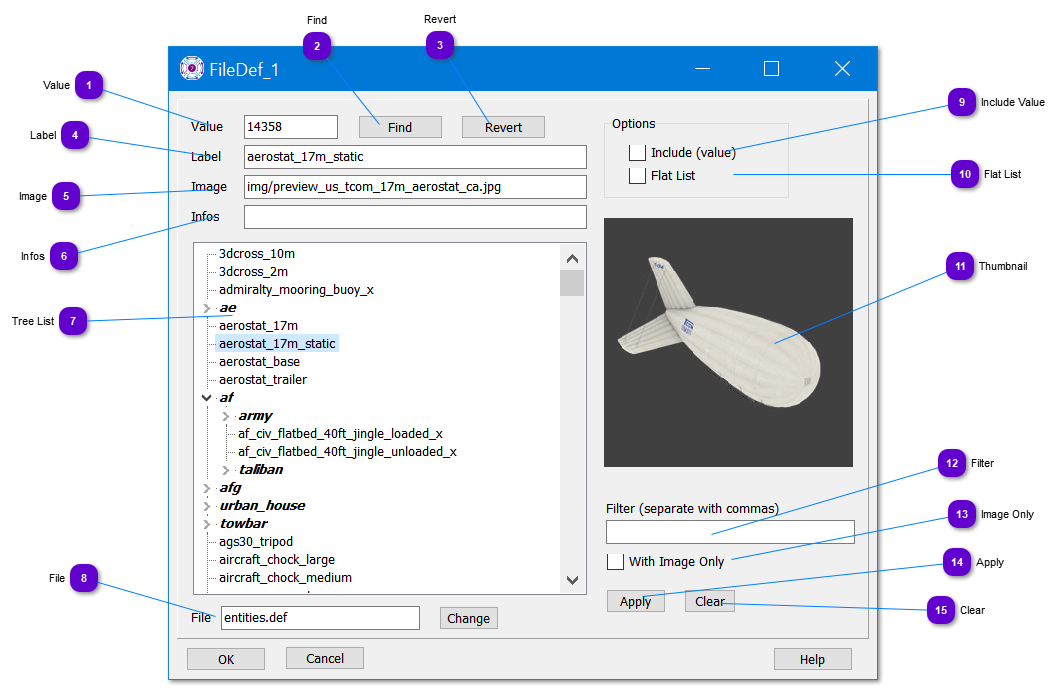

 ValueID value extracted from the line:
id = label {: image file} { // comment }
|
|
 FindFind in the list the entry whose ID is set in the field. You can change it and press Find to retrieve it and fill all fields + image if defined
|
|
 RevertRevert to the default value mentioned in the field from which this window has been opened.
|
|
 LabelLabel value extracted from the line:
id = label {: image file} { // comment }
|
|
 ImageOptional Image file extracted from the line:
id = label {: image file} { // comment }
It must be separated from the label with a colon.
|
|
 InfosOptional comment extracted from the line:
id = label {: image file} { // comment }
It must be located at the end of the line, prefixed with //
|
|
 Tree ListDescription of all the entries from the definition file.
Hierarchies are defined using # label and #--
|
|
 FileName of opened file. Use button to select another one.
|
|
 Include ValueIf checked, the tree list will also display the ID between parenthesis after the label.
button must be depressed to rebuild the tree list.
|
|
 Flat ListIf checked, the tree list will display all entries disregarding the hierarchy definitions.
button must be depressed to rebuild the tree list.
|
|
 ThumbnailDisplay here the preview image (thumbnail) defined in the line, for the selected entry.
The image should be located in the level below the loaded definition file.
|
|
 FilterEnter here any motif to look for in the labels.
button must be depressed to rebuild the tree list.
|
|
 Image OnlyIf this option is checked, only the entries with image will be kept.
button must be depressed to rebuild the tree list.
|
|
 ApplyRebuild the tree list according to the selected options.
|
|
 ClearSet the options to default values.
|
|
