OsgEarth

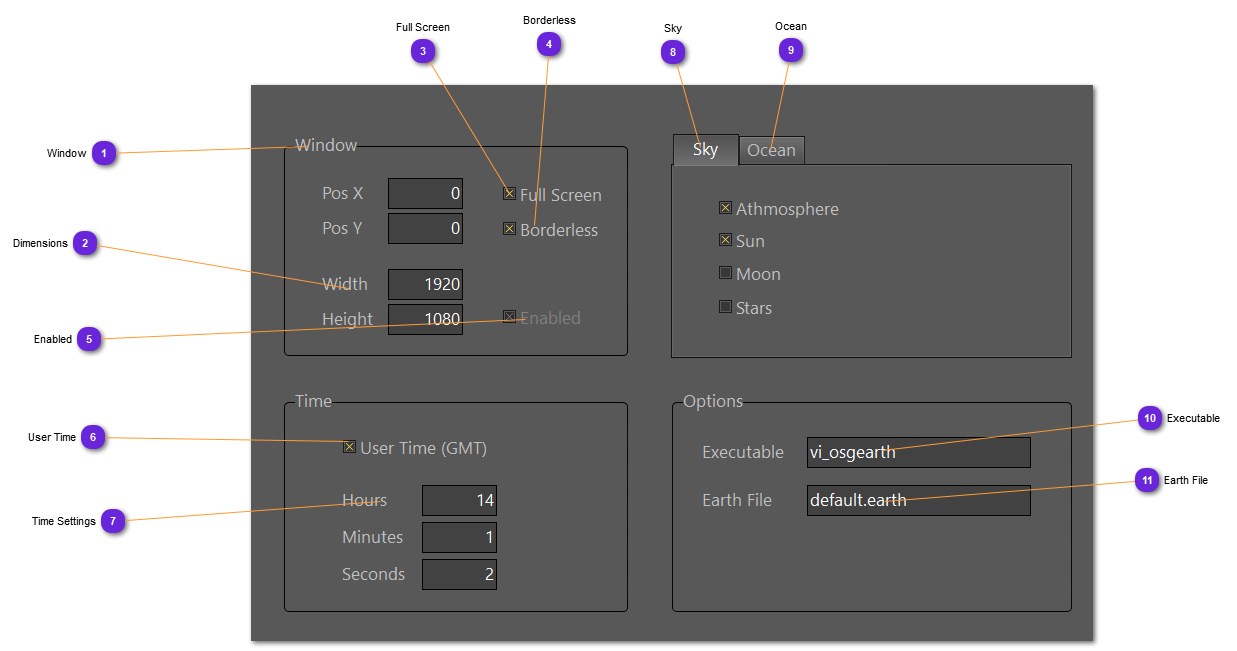

OsgEarth IG settings
OsgEarth
1

Window

1. Window
Set here the position of the windows from the top left corner of the screen, in pixels.

2

Dimensions

2. Dimensions
Set the dimensions of the window in pixels. Width horizontally and Height vertically.
Note that the dimension is not the resolution.

3

Full Screen

3. Full Screen
Check this to force the display to occupy the full screen dimensions.
Note that the dimension is not the resolution.

4

Borderless

4. Borderless
Window will be deplayed without menu and window border.

5

Enabled

5. Enabled
Always checked by default. Cannot be changed for now.

6

User Time

6. User Time
When set, the user time settings will be used. If not set, the current computer time is used for Greenwich time.

7

Time Settings

7. Time Settings
Set here the time, minute and seconds at Greenwich.

8

Sky

8. Sky
In this tab, set the sky definition for the earth. See parameters here.

9

Ocean

9. Ocean
In this tab, set the ocean definition for the earth. See parameters here.

10

Executable

10. Executable
Name of the executable to launch.
This executable must be located in VirtualSim\vsViewer\1\Runtime\OshEarth

11

Earth File

11. Earth File
Earth definition file to use.
This file is located in VirtualSim\vsViewer\1\Data\OsgEarth\Config
