LAN


Define the LAN protocol.

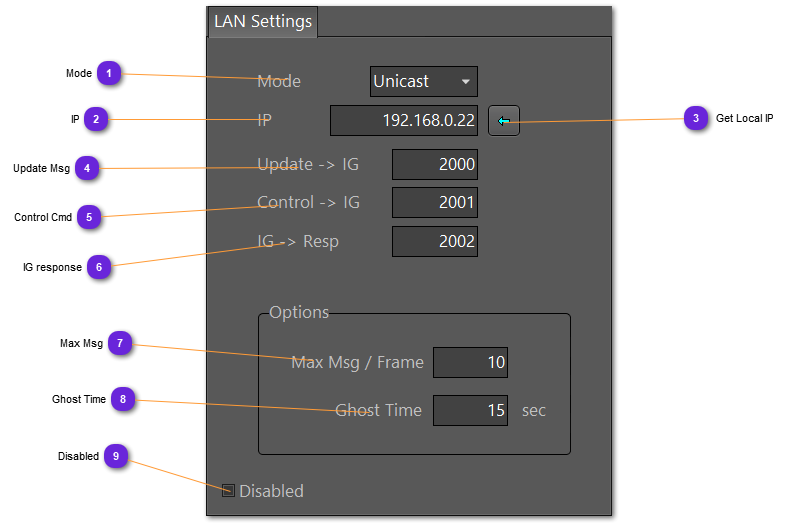

LAN
1

Mode

1. Mode
Select the connection mode for the host:
  • Unicast
  • Multicast
  • Broadcast

2

IP

2. IP
Set here the IP address where the client (IG) is running.

3

Get Local IP

3. Get Local IP
Use this button to get the current computer IP.

4

Update Msg

4. Update Msg
Set the port used by the IG to receive the entity create/update commands from the host.
Visit here for the full list of supported messages.

5

Control Cmd

5. Control Cmd
Set the port used by the IG to receive the host control commands.
Visit here for the full list of supported commands.

6

IG response

6. IG response
Port used by the host to receive the IG acknowledge messages.

7

Max Msg

7. Max Msg
Set here the limit for the number of messages the engine can process in one cycle.

8

Ghost Time

8. Ghost Time
Set here the time in seconds after which, an entity without any update message will be removed from the IG.

9

Disabled

9. Disabled
Check this to disable the LAN settings. Sockets will not be created.
