DIS Setting


Define the DIS network protocol.

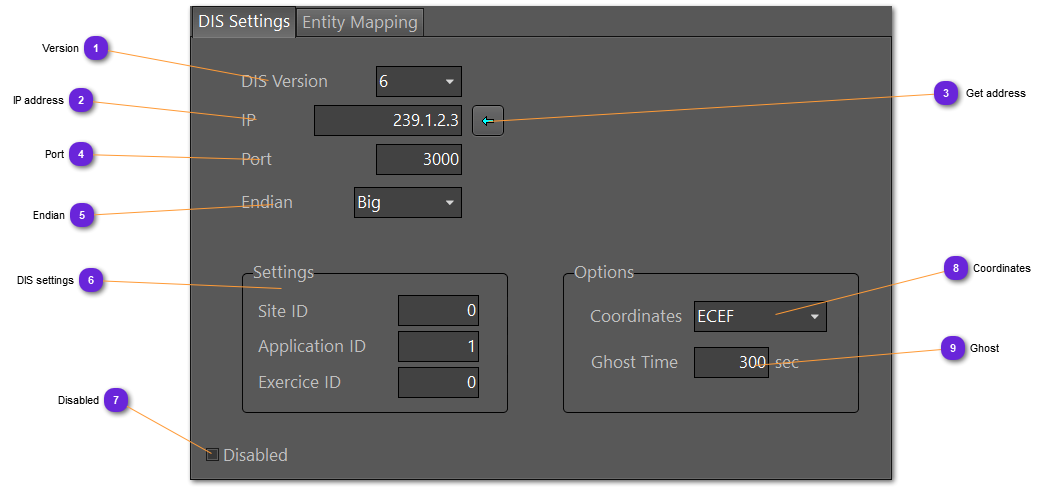

DIS Setting
1

Version

1. Version
Select the DIS version used by the IG.

2

IP address

2. IP address
Set here the IP broadcast address of the DIS network.

3

Get address

3. Get address
Use this button to get the default broadcast address.

4

Port

4. Port
Set the IG port for incoming messages.

5

Endian

5. Endian
Specify if incoming messages are coded in big or small endian.

6

DIS settings

6. DIS settings
Specify which Site, Application and Exercise id the IG must filter in.
Set 0 for any.
For i.e., in the above setting, only incoming messages from application ID 1, whatever the Site or Exercise, will be processed.

7

Disabled

7. Disabled
Check this to disable the DIS settings. Connection will not be set.

8

Coordinates

8. Coordinates
Set the preferred system for the DIS PDU coordinates.
Default is ECEF.

9

Ghost

9. Ghost
Set here the time in seconds after which, an entity without any update message will be removed from the IG.
