DIS Entity Mapping


Pair the DIS entity definitions with the 3D models.

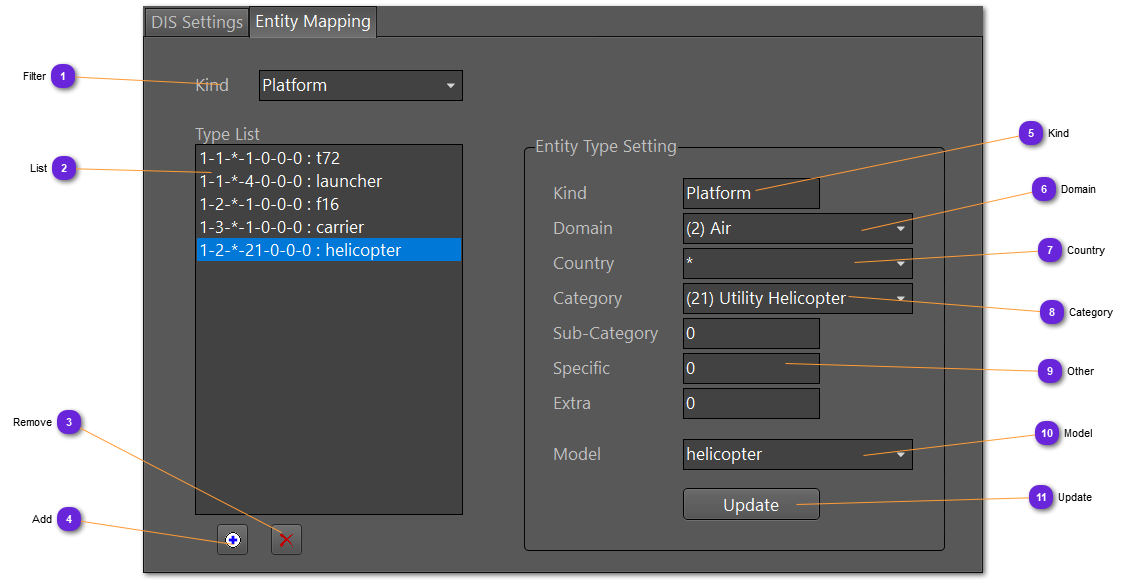

DIS Entity Mapping
1

Filter

1. Filter
Filters the list on the Kind property.

2

List

2. List
Lists all the models which have been paired.
Left is the entity marking, right the model name.
* means that any number can match.

3

Remove

3. Remove
Use this button to remove the selected pair.

4

Add

4. Add
Use this button to add an empty entry (x-0-0-0-0-0-0) into the list. x is according to the filter Kind.
Once added, select it and start filling the fields on the right side.
Do not forget to associate a model with the marking.

5

Kind

5. Kind
Select the entity Kind, from the following list:
  • Other
  • Platform
  • Munition
  • Life form
  • Environmental
  • Cultural feature
  • Supply
  • Radio
  • Expendable
  • Sensor/Emitter

6

Domain

6. Domain
List is built according to Kind.
Set 0 (Other) for any.

7

Country

7. Country
Find the country from the list.
Set 0 (Other) for any.

8

Category

8. Category
List is built according to Kind.
Set 0 (Other) for any.

9

Other

9. Other
Use * for any.

10

Model

10. Model
Select from the model list the one to pair with the current marking.
This selection is mandatory.

11

Update

11. Update
Use this button to validate the setting (or the change).
