Search Path


Search patterns can be stored into the database as Search-Path in one or several Pattern containers.
Stored Search-Paths can be reused and copied into the current scenario without having to redefine them.


Create a Search-Pattern on the scenario, as a Feature.
See here on how to do.

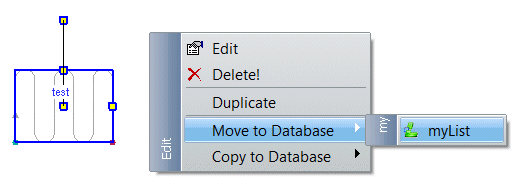

Now select the Search-Pattern (test), right click, select Move to Database and from the drop down list, select the myList container where to Move or Copy the selected Search-Pattern.
Move: copy and delete from the scenario
Copy: copy and leave it.

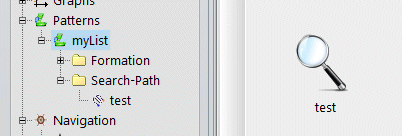

The test Search-Pattern is now in the myList container as a Search-Path.

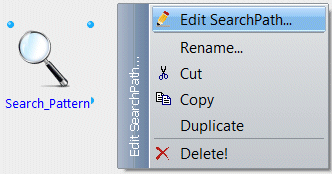

When selected, popup menu from the mouse right click:
Edit Search-Path: see Properties for details

Rename: change the name of the current selected Search-Path

Cut: copy the Search-Path to the clipboard and remove it from the current container

Copy: copy the Search-Path to the clipboard

Duplicate: do a copy then paste on the same container

Delete: remove the selected Search-Path from the container and Database.

Double click on any Search-Path opens their property window.

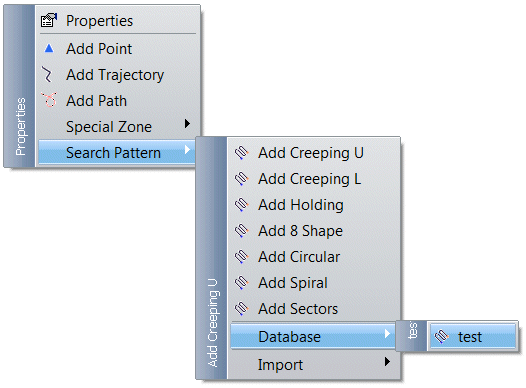

On the scenario map, under Feature tab, use the popup menu and select the Search-Path to instanciate from the Database drop down list.
You can instanciate at design and runtime.
