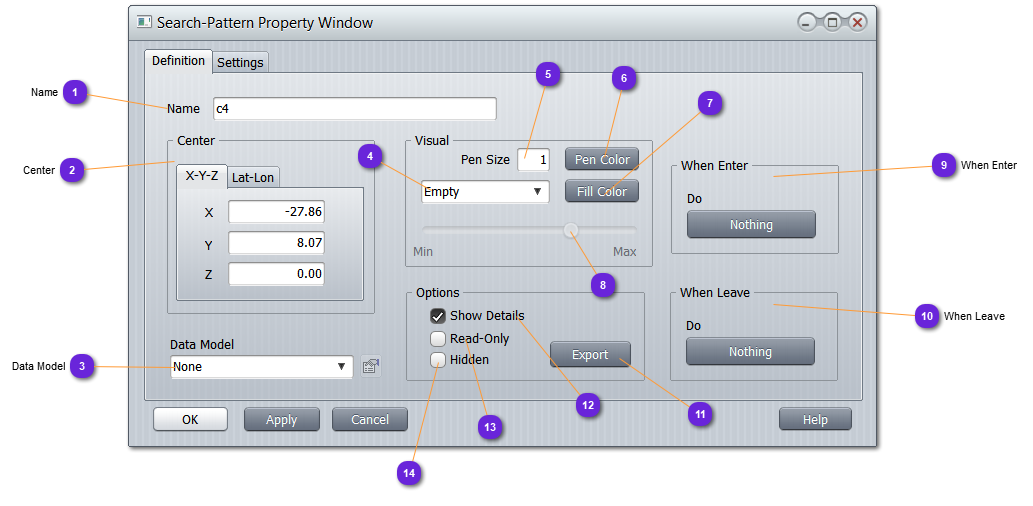

Properties

Name of the search pattern.



Position of the search pattern center.

Can be modified manually.



If a data model must be associated with the search pattern (to get extra settings or give specific data to the user code), select it from the drop down list.

To set or change the parameters (interface) of the data model, use the button.

For example, a pattern might represent an holding procedure. User can then create a data model named HoldingProc with all kind of data some other components or logics might need to process. Using the data model attachment capability, user will be able to specialize any search pattern of his scenario.



Specify the way the rectangular pattern area will be drawn



Specify the width of the pen used to draw the path inside the search area.



Select the color of the pen used to draw the path inside the search area.



Select here the background color to use for filling the pattern area.



When background type is Transparent (4), use the slider to define the opacity level of the Fill color (7).

Min (glass), Max (opaque)



Set here the event to be triggered when an entity goes by the entry point of the search pattern.

This behavior is internally handled by the SearchPattern component.



Set here the event to be triggered when an entity goes by the exit point of the search pattern.

This behavior is internally handled by the SearchPattern component.



Use this function to save the search pattern into a file in /data/shared/features directory.

Exported search pattern can then be reused into another databases.

To share search patterns between scenarios (of the same database) or store them for runtime, use the Pattern environment save/move function of the popup menu.



When checked, the path (including entry/exit points) will be drawn inside the area.

If unchecked, only the area rectangle will be drawn.



When checked, the pattern will not be modifiable or displaced on the map.



When checked, the rectangular area (including the path) will not be drawn on the map. Pattern will be invisible.
