SilverLining


SilverLining is a class library for real-time visual simulation of the atmosphere, clouds, sky, precipitation, sun, moon, stars, and planets. SilverLining allows you to create highly realistic, high-performance outdoor scenes with 3D clouds for any location at any time of day.
You can get SilverLining at www.sundog-software.com

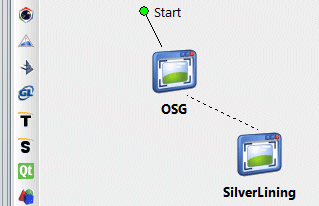

vsTASKER allows SilverLining to extent OSG scene by adding clouds to the sky. SilverLining needs an IG to connect to.
SilverLining software and license must be requested from a proper vendor (Sundog-Software), as vsTASKER does not provide them nor behave as a reseller or does support line for the product.

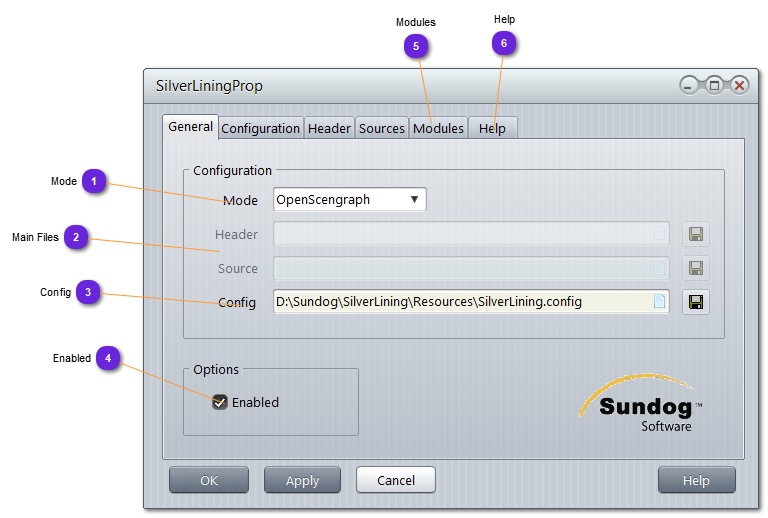

SilverLining
1

Mode

1. Mode
Select the IG SilverLining connects to (currently, only one choice: OSG)

2

Main Files

2. Main Files
Not available for OSG mode.

3

Config

3. Config
Config file used by SilverLining for setup.
Content will be displayed in Configuration panel.
Duplicate/backup original file to have something to revert back if you change the parameter values and save them using  .
4

Enabled

4. Enabled
When checked, SilverLining #define will be added into the code to enable all the SilverLining related code in vt_runtime_osg.cpp
vsTASKER produces all needed classes and code in generated files.
When unchecked, all specific viewer code (and third party software API) are not generated and do not impact the makefile.

5

Modules

5. Modules
Put here all your modules that expand the Triton functionality.

6

Help

6. Help
Put here all text explanations or documentation content needed to maintain this Viewer.
The Help content is saved but is not inserted into the generated code.
It will be used for the automatic document generation (see Make Documents)



Contents of SilverLining

Configuration
