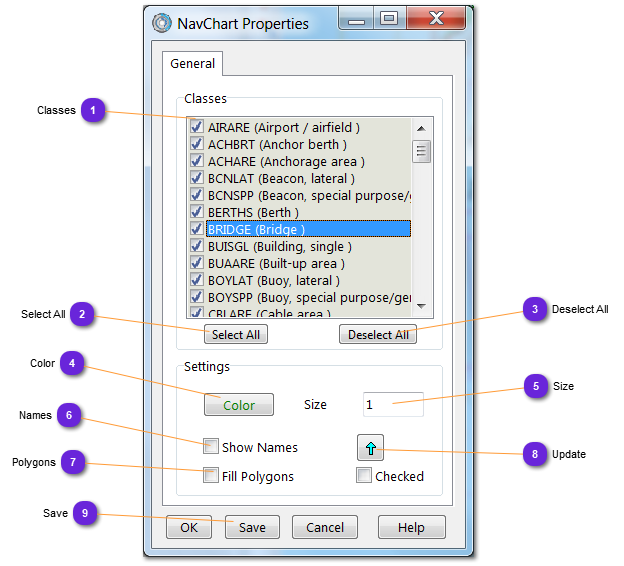

NavChart


NavChart
1

Classes

1. Classes
List of all object classes belonging to the database file.
When checked, the class will be hidden and not drawn on the map.

2

Select All

2. Select All
Use this button to select all the classes above. By doing that, all classes will all be visible and drawn on the map. Also, the settings will propagate to all (see Update)

3

Deselect All

3. Deselect All
Use this button to deselect all the classes above. By doing that, all classes will all be removed from the drawing. Do that before selecting one by one the classes and see their appearance on the map.

4

Color

4. Color
Select the color for drawing the objects of the selected class.

5

Size

5. Size
Size of the selected object class when drawn on the map (text, symbol or line thickness).

6

Names

6. Names
If check, the name of each object of the selected class will be drawn.

7

Polygons

7. Polygons
If check, all object polygons for the selected class will be drawn filled.

8

Update

8. Update
Us this button to update the selected class with all changes of the Settings block.
If Checked option is checked, update will apply for all checked classes of the list (1) in addition of the selected one.

9

Save

9. Save
Overwrite the database file with all the changes in the class settings.
