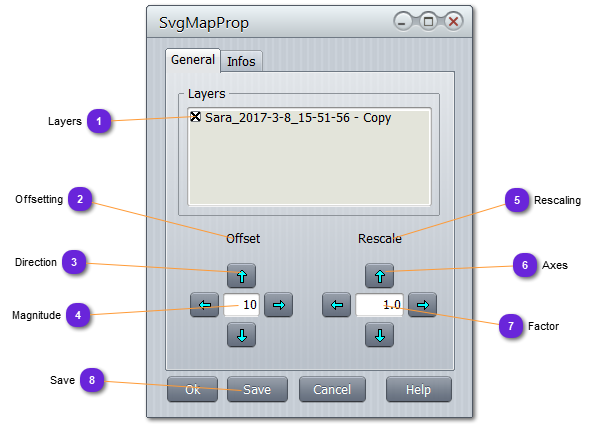

Layers List of all the layers belonging to the SVG database.
Only the ticked layers will be concerned with the offset and rescale functions.
Offsetting Will shift the layer on the terrain by moving both lower-left and upper-right corners according to the offset value (4).
Direction Use Up , Right , Down and Left buttons to offset the ticked layers.
Magnitude Set here the value in meters for each offset step (each button click).
Rescaling Will resize the ticked layers by moving the upper-right corner position according to the scale value (7).
Axes Use the Up , Right , Bottom and Left buttons to rescale the ticked layers on the selected axis.
Factor Set here the value of the rescaling applied on each button click. For ie, if the value is 2 , pressing the Right button will double the actual width of all ticked layers.
Lower-left corner of each layer will remain unchanged.
Save Will overwrite the SVG database with the modified layers. Without saving, all the changes will be lost when the database is closed.
