Popup Menus

Scenario popup menus can be displayed when using the right mouse click on Terrain map mode, over an empty area (no entity nor plan nor anything but terrain below the mouse)

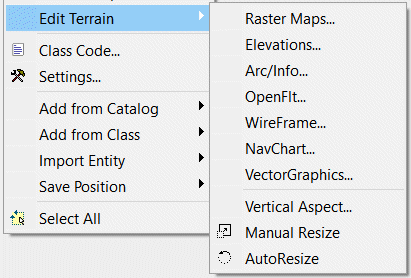

At Design

Edit Scenario: call the property window

Edit Description: see property window, description button

Edit Terrain: see below

Class Code: call the Class editor window

Settings: call the database settings window

Add from Catalog: add one entity in the scenario from the Catalog list

Add from Template: add one entity from the list belonging to the same template

Import Entity: add one entity from exported entities to data/shared/entities

Copy Position: copy to clipboard (in ASCII format) the actual mouse position

Select All: Select all entities

Copy: Copy the selected entities

Duplicate: Duplicate all the selected entities

Delete: Delete all the selected entities

RasterMap: see here

Elevations: see here

Arc/Info: see here

OpenFlt: see here

WireFrame: see here

NavChart: see here

VectorGraphics: see here

Vertical Aspect: see here

Manual Resize: use the mouse to select the terrain area. Cursor change to + for selection (top-left, bottom-right)

Auto Resize: automatically reset the terrain area according to all object positions

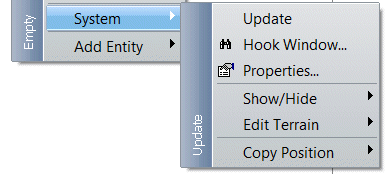

At Runtime

Empty: name of the current scenario (grayed out)

Commands: list all user defined commands

System: see below

Add Entity: list of the database catalog entities ready to be added

Update: ask the simulation engine to refresh the shared memory. If an entity is focused, to refresh the entity data.

Hook Window: call the scenario hook window

Properties: call the scenario design property window (in runtime, double click displays the hook window)

Show/Hide: display or hide entity symbols or entity names, on the map.

means Show.

Edit Terrain: see above

Copy Position: see above
