Factory

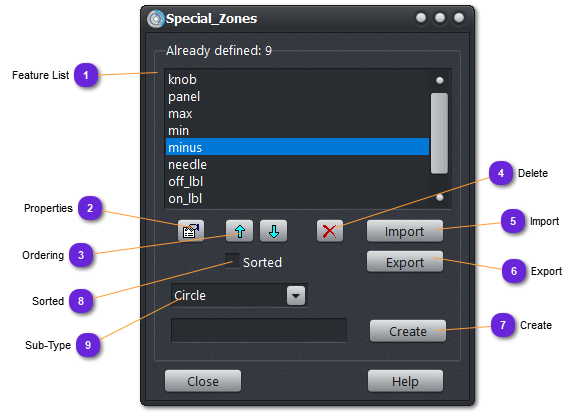

This window is used to create (or modify) any feature of a given type.

Factory
1

Feature List

1. Feature List
List of all the defined features in the scenario.
The window title mention the type of feature processed by this window.

2

Properties

2. Properties
Display the property window of the selected feature (above).

3

Sorting

3. Ordering
Move up or down the selected feature in the list.
All features of the same type are drawn from top to bottom. If a feature is hidden behind another one, put it after the hiding one.
4

Delete

4. Delete
Suppress the selected features (one or many).

5

Import

5. Import
Load a previously exported feature from the /shared directory.

6

Export

6. Export
Save the selected feature into the /shared directory.

7

Create

7. Create
Type here the name of the feature you want to create and press the button.
If the name is already taken, vsTASKER will automatically make it unique (by adding a number).

8

Sorted

8. Sorted
When checked, the features are sorted alphabetically. They cannot be reordered manually. The status is recorded.

9

Sub-Type

9. Sub-Type
For some Features, this combo-box allows specifying the sub-type to be created.
Special Zones:
  • Circle
  • Rectangle
  • Polygon
  • Segment

Search-Patterns:
  • Creeping U
  • Creeping L
  • Holding
  • 8 Shape
  • Circular
  • Spiral
  • Sectors
