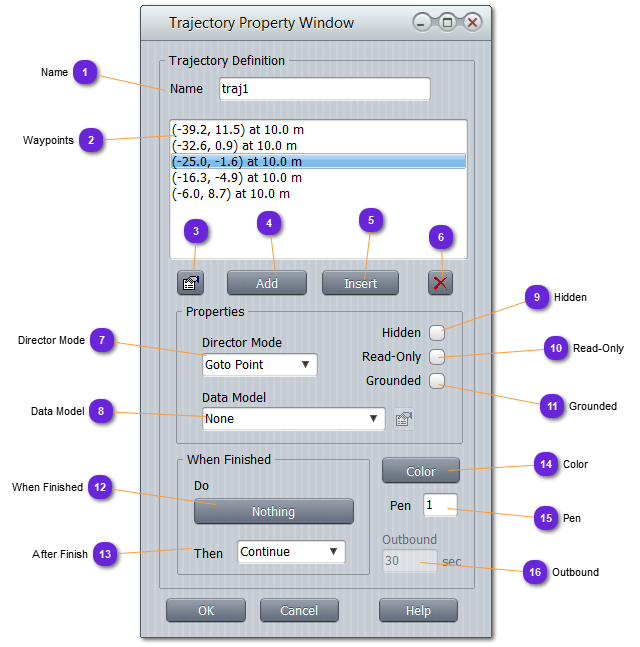

Properties

Name of the trajectory, unique in the scenario.



List of all the waypoints making the trajectory.

Are displayed in each line: x,y position and proximity value.



Call the property window of the selected waypoint.



Add a new waypoints at the end of the trajectory. Mouse changes to +.

Click on the map to drop waypoints. Right click and Done to finish edition.



Add new waypoints after the selected waypoint in the list. Mouse changes to +.

Click on the map to drop waypoints. Right click and Done to finish edition.



Delete the selected waypoint in the list.


Informative information to the navigation modeler on how the trajectory is intended to be followed.



If a data model must be associated with the trajectory (to get extra settings or give specific data to the user code), select it from the drop down list.

To set or change the parameters (interface) of the data model, use the button.

For example, a trajectory might represent an exit procedure. User can then create a data model named FireEngine with all kind of data some other components or logics might need to process. Using the data model attachment capability, user will be able to specialize any trajectory of his scenario.



Check this option to hide the trajectory from the scenario map, when Feature layer not selected.

Check this option so that the user will not be able to move or reshape the trajectory.



Check this option so that all waypoints altitude will always match the terrain level below them (clamped).



When the last point of the trajectory is reached, if an event must be sent, use it here.

See event setting here.



When an extremity of the trajectory is reached, here is the advised procedure:



Color used to draw the trajectory on the map.



Specify here the thickness of the trajectory when drawn on the map.

When end procedure is set to Inverse (13), specify here the time in seconds the entity will recede from the last point before engaging the U-turn maneuver.
