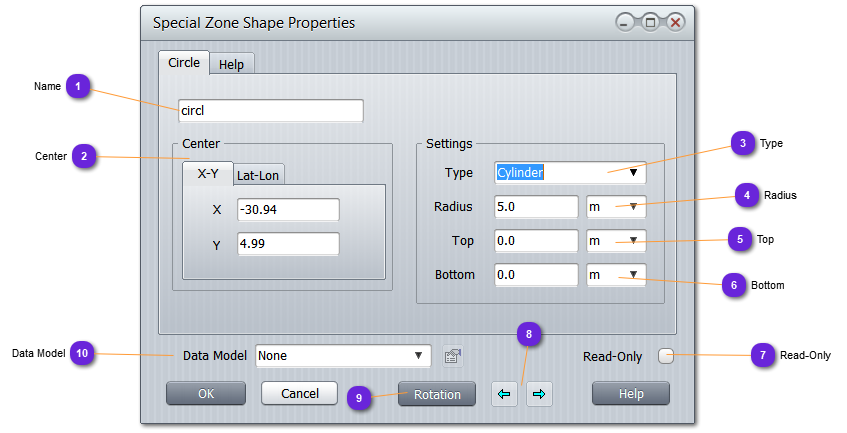

Circle

Name of the area in the zone.

Coordinates of the center of the shape.

User modifiable.



Select here the type of volumetric shape:



Set here the radius of the circle/cyclinder/sphere, in the selected unit.



If type is Cylinder, set the top altitude of the shape.



If type is Cylinder, set the bottom (base) altitude of the shape.



When checked, the area shape cannot be modified.



Use these buttons to navigate from one area to the next one (if many), back and forward.



Activated only when the area shape can be rotated.

See here.



If a data model must be associated with the area (to get extra settings or give specific data to the user code), select it from the drop down list.

To set or change the parameters (interface) of the data model, use the button.

For example, an area might represent a sand pit. User can then create a data model named SandPit with all kind of data some other components or logics might need to process. Using the data model attachment capability, user will be able to specialize any area of his scenario.
